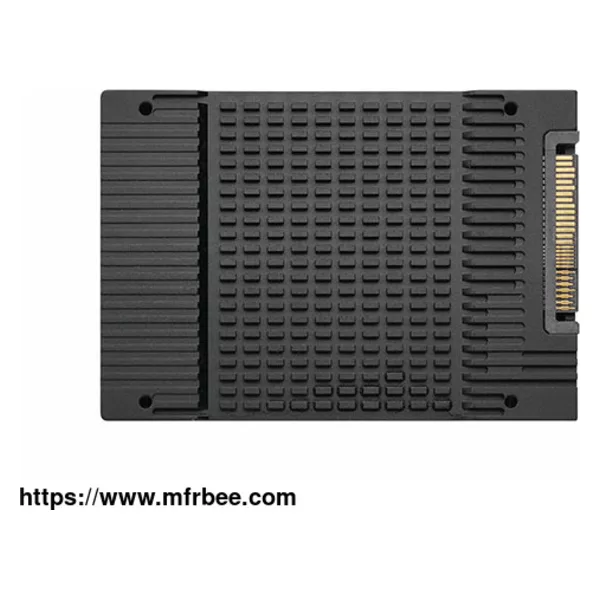

U.2 PCIe YSU2

The YSU2 PCIe U.2 3.8TB SSD by Yansen has been designed to deliver superior performance ensuring reliability to fulfill the diverse application requirements.

The enhanced capacity of 3.8TB enables the users to store extensive data in one compact PCIe SSD China. It entails the computational storage technology to enhance the data processing speed by increasing the efficiency in data reading. By decreasing excessive data movement the computational storage technology also helps in managing the data locally.

To ensure the highest level of expertise in managing a large amount of data, Yansen YSU2 u 2 pcie nvme drive optimizes the hardware and firmware. The focus is to provide ultra-high performance with extended capacity and enhanced reliability.

U.2 PCIE YSU2 Specification

Flash Type TLC

Capacity 800GB~3.84TB

Sequential Read Up to 3000MB/s

Sequential Write Up to 1700MB/s

4K Random Read 400000 IOPS

4K Random Write 90000 IOPS

Operating Temperature 0°C ~ 70°C

Storage Temperature -20°C ~ +75°C

Humidity 5%-95% RH non-condensing

Shock 1500G/0.5ms

Vibration 80Hz~2000Hz/20G

Operating Voltage DC 12V±7%

Power Consumption（MAX） 11W

Dimensions L100.2mm*W69.85mm*H15mm ±0.15mm

MTBF 2 million hours

Warranty 5-year warranty

U.2 PCIE YSU2 Features

Interface：PCIe Gen3 x 4Lane

Low-Density Parity-Check (LDPC) Code

Global Wear Leveling

Flash bad-block management

Flash Translation Layer: Page Mapping

Support S.M.A.R.T.

Support TRIM

Power Loose Protection PLP

We can offer kinds of pcie ssd for sale, and the pcie ssd price is reasonable, if you have needs, please contact us.
