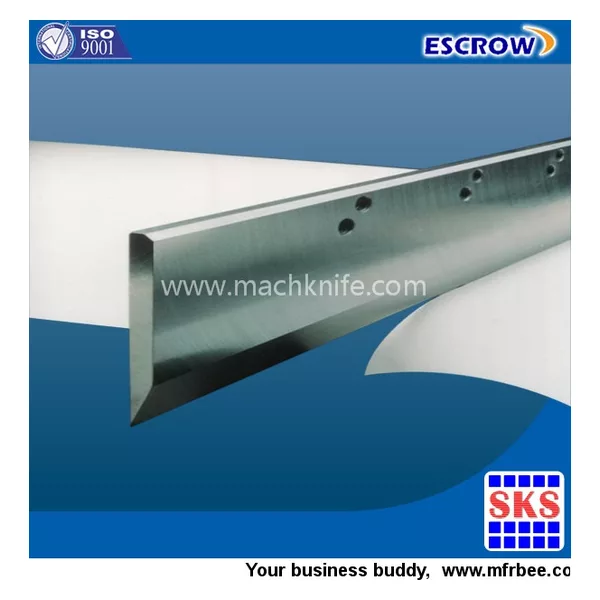

polar 137 cutting blades for printing

Place Of Origin
Chian(Mainland)
Hardness:
HRC40~68 degree
Certification:
ISO9001:2008
Material:
Hss Inaly
Parallelism Tolerances:
within 0.003mm
Property Of Company:
manufacturer/factory/supplier
Packaging
anti-rust oil ,plastic bag , plywood case (or as customers' request)
Delivery
depends on your quantity(usually within 3--4 weeks )

Features of polar 137 cutting blades for printing :

1, Forging steel make the inside microstructure become much closer and the metal grain size becomes much smaller to ensure a long working life.

2, mirror surface finish,Polished bevel for minimum friction.

3, sharp cutting edge,higher precision ,excellent cutting efficiency.

4, Longer life between regrinds and higher number of regrind per knife.



Technical Parameters of polar 137 cutting blades for printing :

1. Angle of chamfer (single sided blade): 22-24 degree

2. Tolerances:

(1) straightness accuracy of blades: 0.1mm/1000mm;

(2) blade flatness: <ra 0.1um;

(3) parallelism: 0.02mm

Specification : (According to customer's samples or sample map made to

order .)

specification (mm) length width thickness
400×127×12.7 400 127 12.7
450×130×10 450 130 10
492×127×12.7 492 127 12.7
550×130×13 550 130 13
580×127×12.7 580 127 12.7
680×127×12.7 680 127 12.7
710×127×12.7 710 127 12.7
780×127×12.7 780 127 12.7
915×127×12.7 915 127 12.7
1065×127×12.7 1065 127 12.7
1080×127×12.7 1080 127 12.7
1092×127×12.7 1092 127 12.7
1100×127×12.7 1100 127 12.7
1118×127×12.7 1118 127 12.7
1150×127×12.7 1150 127 12.7
1270×127×12.7 1270 127 12.7
1300×130×12.7 1300 130 12.7
1305×140×11 1305 140 11
1345×140×12 1345 140 12
1350×127×12.7 1350 127 12.7
1350×140×12 1350 140 12.7
1370×127×12.7 1370 127 12.7
1390×127×12.7 1390 127 12.7
1390×160×12.7 1390 160 12.7
1390×160×13.7 1390 160 13.7
1400×127×12.7 1400 127 12.7
1450×127×12.7 1450 127 12.7
1500×127×12.7 1500 127 12.7
1520×127×12.7 1520 127 12.7
1605×160×13.7 1605 160 13.7
1785×160×13.6 1785 160 13.6

Why do you choose us ?

1,We are a China-based factory ,manufacturer.

2,Passed the ISO9001 Quality Certification in 2008.

3,Forging each individual blade to ensure a long working life.

4,Triple-tempering to retain the hardness while toughness kept.

5,SKS offers HSS tipped knife/Tungsten Carbid tipped blades.

6,Laser marking is available.

7,Short delivery time,considerate packaging.
