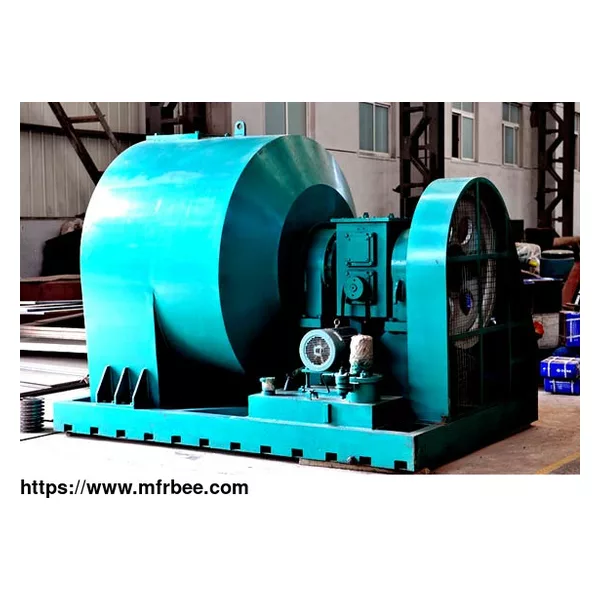

Horizontal Centrifuge Machine

TWZ series horizontal vibratory centrifuge belongs to the centrifugal dewatering machine, the series of horizontal vibratory centrifuge is mainly used for dehydration of fine and medium coal (0.5 to 26mm), it can also be used for other similar materials dehydration.

Structural Features of Horizontal Centrifuge Machine

The horizontal vibratory centrifuge made the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. The TWZ series has many advantages, including high production, small crushing degree, long life period of screen, stable, convenient to fix, simple structure, low noise, high reliability and low cost.

Main Features of Horizontal Centrifuge Machine

Industrial centrifuge machine has high treatment ability, good dehydration effect.

Small crushing degree, the screen basket is more wearable, long life period.

TWZ series have inertial resonance vibration system, amplitude and product rate are stable and reliable. The TWZ vibration system has the advantages of smooth running, low noise, simple structure, convenient maintenance and energy saving.

Horizontal centrifuge machine can be applied as coal centrifuge and sludge dewatering centrifuge.

Working Principle of Horizontal Centrifuge Machine

Materials entered into the bottom of the screen basket through a feed-in tube with an enamel and screen base, materials within the screen barrier subjected to centrifugal force and closed to the screen surface. Under the effect of vibration, the material layer moved toward large end of screen basket evenly, the dehydrated material was thrown around the screen basket, falling into a discharge port at the bottom of the shell and discharged. The moisture in the material through the material layer and the sieve seam was thrown around the shell under the action of centrifugal force, then along the shell wall to the drain outlet.

Working Principle of Horizontal Centrifuge

Technical Performance of Horizontal Centrifuge Machine

Basic Parameters Unit Model

TWZ850 TWZ10A TWZ1150 TWZ1300 TWZ1400 TWZ1500

Feed Size mm ≤50 0-25 0.5-50 0-50 ≤50 0.5-50

Processing Capacity t/h 30-50 50-100 100-150 180-250 200-300 250-350

Product Moisture % 44325

Large Diameter of Screen mm 850 1000 1150 1300 1400 1500

Size of Screen Cut mm 0.25，0.3，0.35，0.5

Vibration Frequency Hz 25 255 25 25 25 25

Double-Amplitude mm 44292 44292 44292 44292 44292 44292

Power of Main Motor Kw 15 22 37.5 45 55 75

Power of Vibration Motor Kw 4 5.5 7.5 7.5 11 15

Power of Oil Pump Motor Kw 0.37 0.37 0.55 0.55 0.55 0.55

Size Length mm 2060 2150 2800 2700 3100 3170

Width mm 1510 1875 1930 2260 3090 2975

High mm 1625 1765 1930 2245 2295 2400

Weight kg 2500 2620 5527 6500 9200 10000
