Full Automatic Toilet Paper Roll Packing Machine (DC-TP-PM1)
Product Quick Detail
- Place Of Origin
- China
- Packaging
- stabdard export wooden case
- Delivery
- 35 Days
Specifications
I. Introduction
Model name: DC-TP-PM1

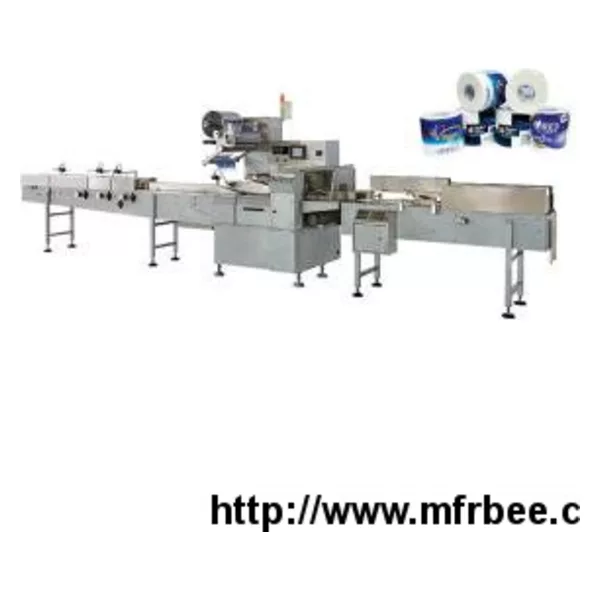

This machine is used to pack single piece of toilet paper roll and kitchen towel roll as the picture shown above. It is automatic type.
II. Function and Features
This machine is suitable for square or cylindric paper. It is characteristic of compact sealing, tidiness, good looking as well as easy operation, flexible, fast and stable
running, low noise and so on.
1.Simplified mechanical structure with double inverters for easy maintenance,
less vibration, less abrasion, low noise and long.
working life.
2. Double paper supporting devices are applied for fast film changing.
3. Super large LCD screen with human-machine interface for intuitive
operation.
4. Controlled by double inverters with stepless speed regulation, packing
speed and bagging length can be adjusted casually. The bag length set
can be met instantly and much film is saved accordingly.
5. High precision photocell correctly performs color code tracking automatically for
correct sealing and cutting position.
6. Sealing temperature is independently controlled.
7. With installation of date printer, the printing position can be set freely.
working life.
2. Double paper supporting devices are applied for fast film changing.
3. Super large LCD screen with human-machine interface for intuitive
operation.
4. Controlled by double inverters with stepless speed regulation, packing
speed and bagging length can be adjusted casually. The bag length set
can be met instantly and much film is saved accordingly.
5. High precision photocell correctly performs color code tracking automatically for
correct sealing and cutting position.
6. Sealing temperature is independently controlled.
7. With installation of date printer, the printing position can be set freely.
III. Technical Parameter
|
Model
|
DC-TP-PM1
|
|
Center distance
|
192mm
|
|
Packing style
|
Pillow type(back to back)
|
|
Packing speed
|
150bags/min
|
|
Filling capacity
|
500-7500g
|
|
Max film width
|
450mm
|
|
Bagging size range
|
L150-250mm
W140mm H120mm |
|
Total power:
|
3.2KW
|
|
Power supply
|
220V50HZ ( For your reference, it depends on the power situation in your place)
|
|
Power of main motor:
|
0.750.2KW
|
|
Packing film
|
OPP、PE、PVC、OPP/CPP、PT/PE,NY/PE, etc or some vacuum alu-coated film.
|
|
Working noise
|
≤78
|
|
Pass percentage of finished bags
|
≥97%
|
|
Sealing intensity
|
15 (NEWTON/mm2 )
|
|
Machine weight
|
900kgs
|
|
Machine dimensions
|
6432X1115X1750mm
|
|
Note: As the material for wrapping maybe different, the above date will be a little changed.
|
IV. Export Details
1. Delivery time: 35 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may
be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The
round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to
solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
