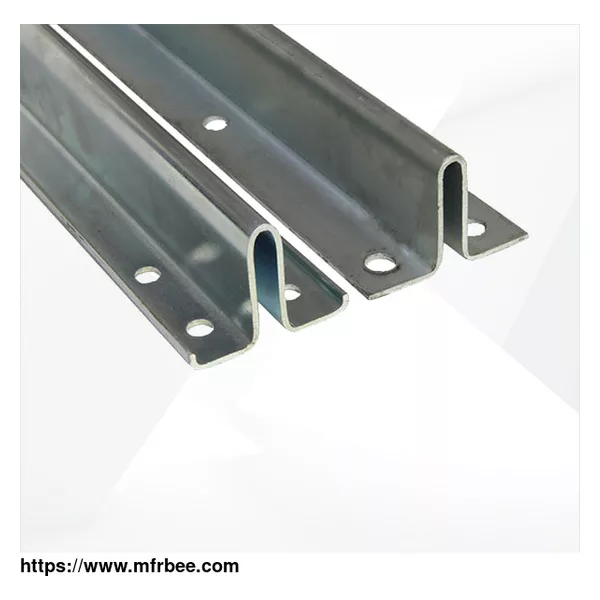

Hollow Guide Rail
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The elevator guide rail is the safety rail for the elevator to travel up and down in the hoist. The hollow guide rail is installed on the hoist wall and is fixedly connected to the hoist by the
guide rail frame and the guide rail bracket. We offer various models of high quality hollow guide rails including TK3, TK3A, TK5 and TK5A.
Hollow Guide Rail Basic Information
Type T type guide rail Shipping FCL/LCL
Material Q235 Steel Package Standard package
Standard length 5m Warranty 5 years
Delivery time 2 week Production capacity 35000Tons/Year
Specifications of Hollow Guide Rail
Type b1 c f h1 h2 k m r1 α b3 L2 L3 d
Tolerances ±1.0 - ±0.2/0.15 0/0.5 - ±0.4 - - 3 ±0.5 ±0.5 ±0.5 -
TK3 75 1.8 2.2 55±0.2 10±0.2 25 5 90° 43 90 30 10
TK5 87 1.8 3 60 16.4 25 3 90° 50 180 20 14
TK3A 78 1.8 2.2 60 10 16.4 25 3 90° 45 75 25 11.5
TK5A 87 1.8 3 60 10 16.4 25 3 90° 45 75 25 11.5
Hollow Guide Rail Logistics
Before the logistics transportation, we will have multiple processes to inspect and package the products to ensure that each product is delivered to customers with good quality.
