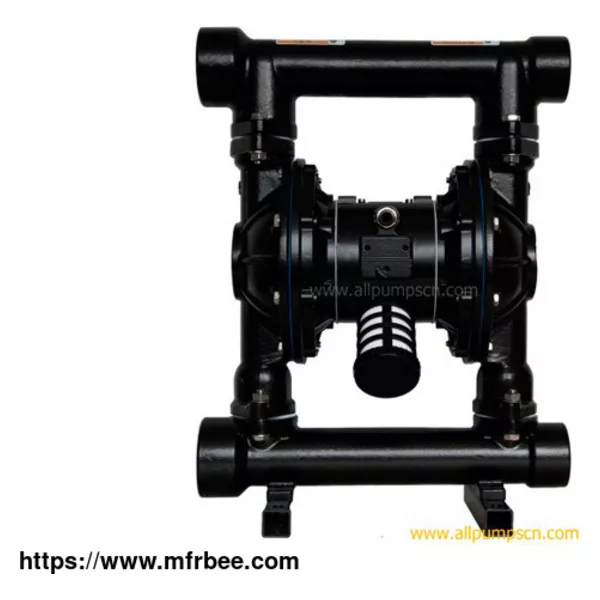

AIR OPERATED DIAPHRAGM PUMPS
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
All Pumps Machinery provides QBY3 diaphragm pumps china Series air operated diaphragm pump for sale is a newly developed model of the third generation ADD pump series pneumatic diaphragm pump, with
long service life, non-stop operation, not only can transport some medium that is not easy to flow, but also has the advantage of self-priming pumps, submersible pumps, shield pumps, slurry pumps,
impurity pumps, etc.
FEATURES OF small air operated diaphragm pump
1. No need to pump water backwards, the suction stroke is 3m, the water outlet is 70m, and the outlet pressure is 6bar;
2. Wide flow and good performance. The maximum particle size allowed to pass is up to 10mm. Minimal damage to the pump when draining mud and impurities;
3. Open the pneumatic valve and steplessly adjust the delivery head and flow (the pneumatic pressure can be adjusted between 1-7bar);
4. The pump has no rotating parts and no bearing seals;
5. No electricity. Safe and reliable when used in flammable and explosive places.
6. Can be soaked in medium;
7. Easy to use, reliable work;
8. Simple structure, installation, maintenance and few wearing parts;
9. Permeable glue (viscosity below 10000 centipoise);
10. The pump does not need lubricating oil. Even idling has no effect on the pump. This is a feature of this pump.
SPECIFICATION OF AIR OPERATED DIAPHRAGM PUMPS
Pump Connection Size 3/8"- 5" (10mm - 125mm)
Max. Pump Flowrate 1041L/M (275GPM or 17L/S)
Max. Working Pressure 0.84MPa(120PSI or 8.4bar)
Max. Air Consumption 325scfm
Temperature Range 440°F /200°C
Materials of Construction Cast Iron, aluminum alloy, PP, Fluoroplastic, Polypetalous, PVDF, Stainless Steel 304/316/316L
As one of the most professional air operated diaphragm pump suppliers, we provide diaphragm pump air consumption, air operated chemical transfer pumps, diaphragm pump for air, air diaphragm pump
air consumption, self priming pumps, etc. For more information, please feel free to contact us!
There are many industrial pumps suppliers, but we are one of the best choices for you.
