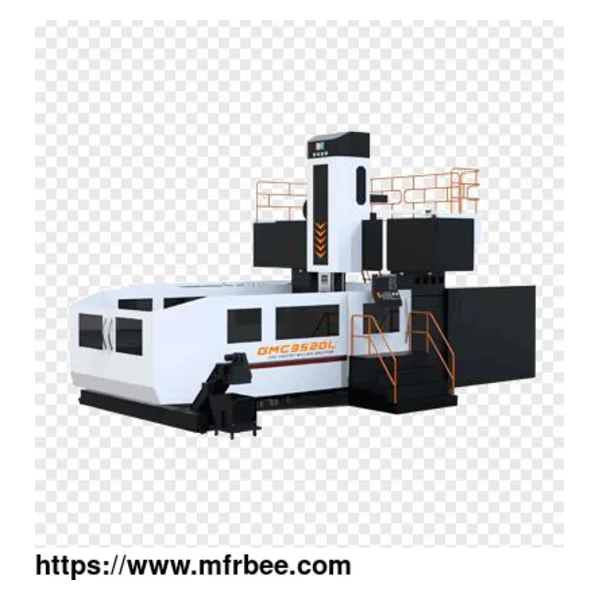

Gantry CNC Milling Machine
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Wooden box with iron support, in line with container packaging requirements
- Delivery
- 90 Days
Specifications
PROVIDE PROFESSIONAL SOLUTIONS FOR DIFFERENT PROCESSING NEEDS
New minerals and new materials
Full stroke machining tool
Model of efficient processing
CNC gantry mill type machining center refers to the machining center with the axis of the Z-axis of the main shaft perpendicular to the workbench. The overall structure of gantry cnc milling
machine is a large gantry type machining center machine with a portal structure frame composed of double columns and top beams, and there is a beam in the middle of the double columns. DEED cnc
gantry milling machine is especially suitable for machining large workpieces and workpieces with complex shapes.
CNC GANTRY TYPE MACHINING CENTER
GMC-series Gantry Machining Center
GL-series Gantry Machining Center
CNC GANTRY TYPE MACHINING CENTER ADVANTAGES
The gantry type cnc milling machine bed and column fixing parts are made of mineral castings imported from Germany, which have better shock absorption, low thermal expansion coefficient, low
thermal conductivity, and corrosion resistance.
Worktable, sliding seat, and headstock are supported by heavy-duty roller linear rails to ensure high rigidity and reduce the weight of moving parts.
The three-coordinate moving parts are supported by heavy-duty roller linear rails, and roller retainers are used to prevent deviation, realize balanced and stable movement, and ensure the accuracy
of gantry milling machine tool operation for a long time.
The main shaft box adopts a large cross-section ram structure, supported by a heavy-duty roller guide, and the main shaft has a strong horizontal cutting ability, which can realize a full-stroke
strong cutting of the Z-axis.
The worktable adopts the best fulcrum design to effectively ensure the high rigidity and stability of the gantry milling machine tool. If the x-axis distance is more than 4.5m, it will be equipped
with a follow-up support mechanism to improve the positioning accuracy and ensure the service life of the lead screw.
The spindle box adopts a large section square ram structure and is supported by four heavy-duty roller guide rails, which has strong resistance to the transverse strong cutting of the spindle and
can realize full stroke strong cutting of z-axis; The z-axis movement adopts the balance technology of double oil pressure balance cylinder to eliminate the up and down unbalanced torque caused by
self-weight.
WHAT IS A CNC GANTRY TYPE MACHINING CENTER USED FOR?
The CNC gantry type machining center has processing functions such as boring, drilling, milling, grooving, etc.; equipped with a high-precision reversing worktable and right-angle milling top
function accessories, it can complete five-sided processing. It is used in metallurgy, power, electric power, and other occupations for steam turbines. Ideal equipment for processing large parts
such as generators and heavy machinery.
CNC gantry milling is a large category of metal cutting machine tools. The large gantry milling machine is known for its high precision and variety. It is one of the necessary cnc machining
equipment for professional precision machining in power, machinery, transportation, metallurgy, aerospace, and military industry.
WORKING PRINCIPLE OF CNC GANTRY TYPE MACHINING CENTER
When the large gantry mill machining center is working, the workpiece is mounted on the worktable or the indexing head and other accessories.
The rotation of the milling cutter is the main movement, supplemented by the feed movement of the table or the milling head, and the workpiece can obtain the required machining surface. Due to the
multi-tool intermittent cutting, the productivity of the milling machine is high. A machine tool for milling a workpiece with a milling cutter.
