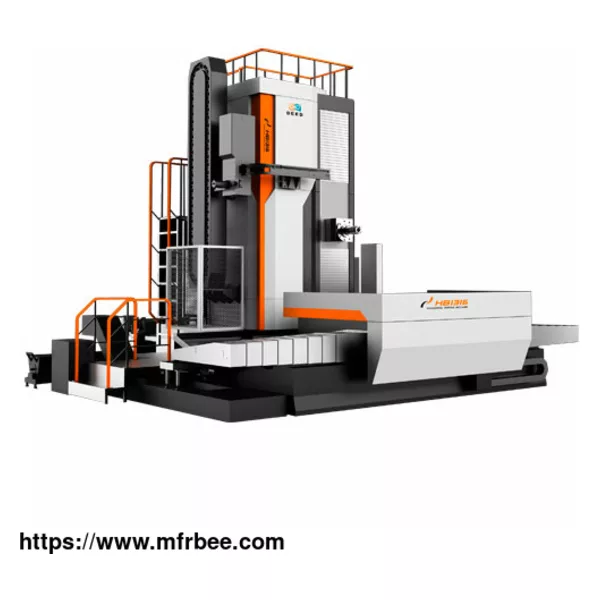

HBC SERIES CNC HORIZONTAL BORING MILL FOR SALE

HBC SERIES CNC HORIZONTAL BORING MILL FOR SALE

HBC Series is our CNC horizontal boring machine. According to the different sizes, we have HBC1116 CNC horizontal boring machine and HBC1316 CNC horizontal boring machine. We introduce German mineral casting material for our horizontal boring and milling center base and column. It has better shake absorption and Low thermal expansion. Worktable, sliding seat, and headstock are supported by heavy-duty roller linear rails to ensure cnc boring machine high rigidity and reduce the weight of moving parts. Choose Deed CNC, one of the top horizontal boring mill manufacturers.

HBC SERIES HORIZONTAL MILLING AND BORING MACHINE SPECIFICATION

Model HB1116 CNC Horizontal Boring and Milling Machine

Boring Shaft Diameter mm 110

Taper shank type BT50

Spindle motor kW 22/26

Maximum torque Nm 2000

Maximum speed rpm 2000

NC turntable Working table m 1200×1400

Position " ±8

Repeat Position " ±4

Max load Kg 3000

trip X-axis travel mm 1600

Y-axis travel mm 1200

Z-axis travel mm 1200

W axis travel mm 600

Feed rate Workbench horizontal (X) mm/min 2-6000

The vertical headstock (Y) mm/min 2-6000

Vertical column (Z) mm/min 2-6000

Boring shaft axial (W) mm/min 2-2000

Fast-moving speed Workbench horizontal (X) mm/min 15000

The vertical headstock (Y) mm/min 15000

Vertical column (Z) mm/min 15000

Boring shaft axial (W) mm/min 3000.
