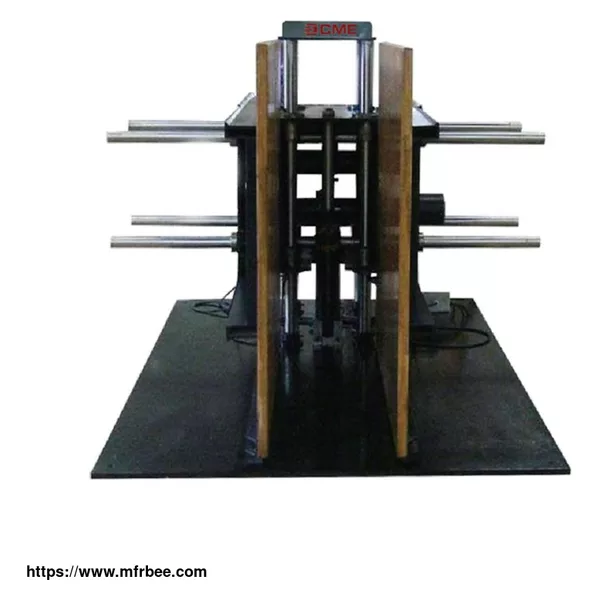

KRD102 series clamping force tester is newly developed multi-functional economical carton quality inspection equipment, mainly used for household appliances, furniture, toys, kitchenware and other
finished packaging to do clamping test. It can simulate the situation of goods being clamped from the container to the warehouse, whether the goods are damaged due to clamping, so as to evaluate
the ability of packaging to resist clamping.
The clamp force tester is an indispensable testing method for improving products to leap into the high-quality field. It is suitable for the research, development, and product development of
various industries such as electronics, electromechanics, optoelectronics, automobiles, toys, and packaging. It can meet ASTM D6055, American SEARS corporate standards, and can also be non-standard
customized according to the different needs of customers.
FEATURES OF KRD102 CLAMPING FORCE TESTER
PLC-based stable control system: fully automatic remote control touch screen interface
Automatic man-machine interactive control, high accuracy, good repeatability
Full hydraulic drive, simple structure, and high reliability
Servo valve control pressurization system: improve the pressure control accuracy, and complete the test with higher requirements
High accuracy, good repeatability, and height measurement is completed by the displacement sensor
Reliable pressure testing system: using high-precision pressure sensors, high precision, and good reliability, to ensure the accuracy of the test
TECHNICAL SPECIFICATIONS OF KRD102 CLAMPING FORCE TESTER
COMPOSITION OF KRD102 CLAMPING FORCE TESTER
KRD102 clamping force test system mainly includes a clamping force testing table, hydraulic drive system, hydraulic proportional servo system, and electrical control measurement system.
The packaging materials testing equipment table is mainly composed of a specimen clamping plate, a guide shaft, a clamping movement cylinder, a vertical movement cylinder, a clamping sensor, a
displacement sensor, a hydraulic oil source, etc.
The control system sends the set data signal to the proportional servo amplifier to control the corresponding electro-hydraulic proportional servo valve. The electro-hydraulic proportional servo
valve is supplied with pressure from the hydraulic source system to push the hydraulic drive system to drive the movement of the splint to generate the corresponding clamping force.
For more information about mechanical testing system and shock testing machine, please feel free to contact us!
