Wedge Wire Tube

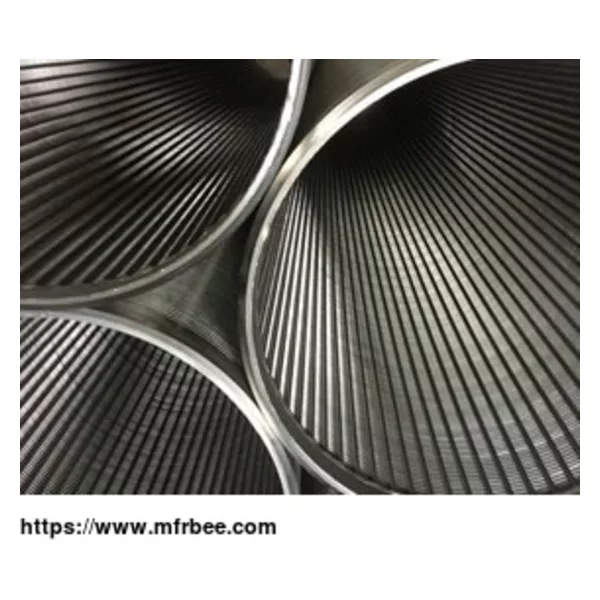

Wedge Wire Screen Tube
Wedge wire screen tube 1.75" in diameter with the Wedge Wire being a #60 profile out of 304 stainless steel as well as some out of 316 stainless steel. the length needed is varying.

Stainless steel slot tube, wedge wire filter

FOTI wedge wire screen cylinders slotted tube
FOTI x 78mm OD x 1200mm Long x 100 micron slot x SS316
FOTI x 78mm OD x 1200mm Long x 25 micron slot x SS316
FOTI, 60mm OD x 1200mm Long x 100 micron slot
FITO,125 to 128mm ID x 1200mm Long x 100 micron slot SS316
Collapse pressure; bar , burst pressure: bar., Open Area : % .
Higher open area with reasonable collapse pressure.
Slot may be radial type....
So far axial slot will be costlier
In all FOTI cases, out side surface should be smooth & any support bar may be at inside only.
In FITO case, Inside surface should be smooth & any support bar may be at outside only.

Wedge Wire Screen Cylinders Tube screen
Wedge Wire Screen Cylinders( Tube screen).
Diameters: 24"(600mm), Length: 120"(3000mm).
Slot open: 0.039" (1mm).
Material: SS304.

Half-cylinders or full tubes
Clamshells (half-cylinders) of perforated stainless steel with the following specs:
3" inner diameter.
3/16" holes, 1/4" separation, 60 deg. staggered (51% open)
Also full tube would cost with the above specs.

Wedge wire pipe cylinder
Model : standard external circumferential
Type : V type shape wire wedge screen tube
Material : ss.304
Size : 2,5 inch
Length : 6000 mm
