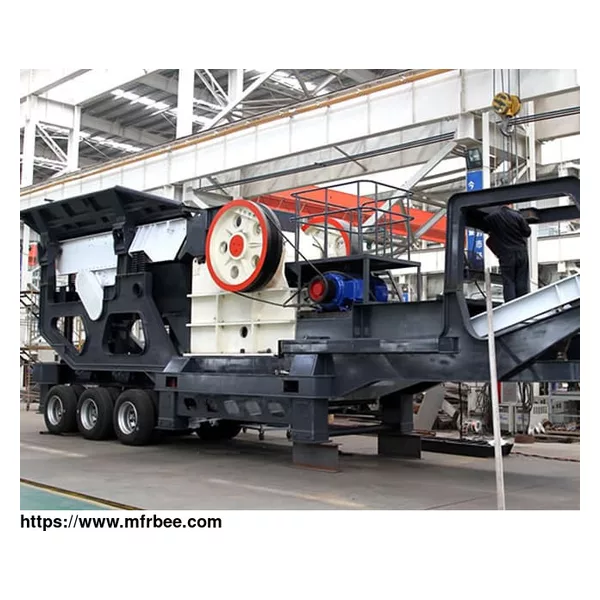

Mobile Stone Crusher

Brief In Mobile Stone Crusher

Mobile crushing plant include crawler-type mobile crusher and wheeled mobile crusher. The mobile crushing equipment is a set of movable crushing and screening equipment. According to the crushing and screening requirements, there are different combinations to meet the different needs of customers, such as mobile jaw crusher, mobile cone crusher, mobile impact crusher etc.

The mobile stone crusher is the matching equipment. It can provide a variety of individualized unit configurations according to the different requirements of customers and the actual situation. It can be operated in a single machine or in multiple units, thus achieving a combination of functions such as single unit crushing, multi-unit combined classification crushing, and screening. The mobile stone crusher can be used in mines, coal mines, garbage and construction waste recycling, earth and stone works, urban infrastructure, roads or construction sites.

Advantages

The set performance is strong, the combination is reasonable and compact, and the requirements for the work site are extremely low;

The vehicle has a compact structure, a small turning radius, and is convenient and quick to convert, enter and exit the site;

It can directly enter the raw material site to work, thus saving the transportation cost of raw materials;

It can be equipped with generator sets to meet the normal operation requirements of complex situations such as no electricity or power failure, reducing losses.

MOBILE JAW CRUSHER TECHNICAL PARAMETERS
Model	GM938HD80	GM1149HD98	GM1349HD110	GM1349HD125
Jaw Crusher	HD80	HD98	HD110	HD125
Maximum Feeding Size (mm)	500	550	660	800
Capacity (t/h) |	85-275	110-350	215-510	280-650

CONE CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS
Model	GM3S154PSG09	GM3S185PSG130	GM3S216HP300
Weight(t)	34.5	49.5	41
Cone crusher	PSG09	PSG130	HP300
Discharging belt conveyor	B650x 15M x2	B800x 15Mx2	B800x 15Mx2

MOBILE IMPACT CRUSHER TECHNICAL PARAMETERS
Model	GM938F1210 GM938FW1214		GM1149F1315	GM1349HD1110
Weight(t)	39	44	54	62
Tire Configuration	PF-1210	PF-1214	PF-1315	HD1110
The Maximum Feeding Size(mm)	350	350	500	400
Capacity(t/h)	70-130	100-180	130-250	112

IMPACT CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS
ModelGM	3S184F210	GM3S185F214	GM3S216F315	GM3S184HD1110
Tyre Configuration	biax fitted	triaxial fitted	triaxial fitted	triaxial fitted
Impact crusher	PF-1210	PF-1214	PF-1315	HD 1110
Note: processing capacity may vary with different materials and feeding sizes.
