Applied Materials: River gravel, iron ore, limestone, basalt, quartz, granite and other medium or hard ores and rocks in metallurgy industry, cement industry, power department, construction,
phosphate, refractory industry, etc.

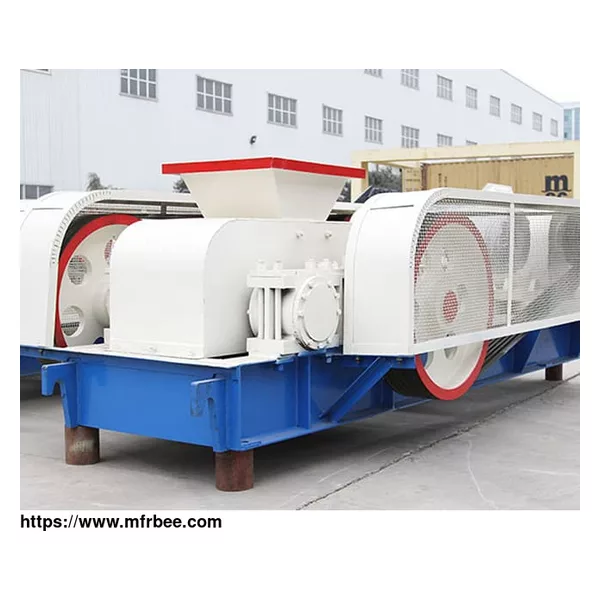

What is Roll Crusher Machine?
With a simple structure and easy maintenance, it is still widely applied for coarse, medium and fine crushing of medium-hard materials, such as limestone, iron ore, pebble, quartz, silica, etc. in
cement industry, chemical industry, electric power industry. Ideal particle size can be achieved by adjusting the gap between rollers.
Roller Crusher Classification
The
roll crusher machine can be classified into single roll crusher, double roll crusher, and
four-roller crusher according to the roller quantity. Double roll crusher, also known as toothed roll crusher, is the most commonly used. Based on the roller speed, roll crusher machine is laid in
high-speed roll crusher, low-speed roll crusher, and differential-speed roll crusher.
Applications of Roller Crusher
Roll crusher is also called roll crusher machine, roller crusher, or roller crusher machine, which has large feeding particle size and adjustable particle size. Roller crusher is suitable for the
fine crushing with the required feeding size of less than 80mm and discharging size of 50μm-20mm, such as the artificial sand making of pebble and construction waste, fine crushing for iron ore and
quartz/silica in ore dressing industry, raw material crushing in ceramic industry and so on. It is also applied for coarse and medium crushing in cement industry, chemical industry, electric power
industry, mine industry, metallurgy industry, building materials industry, refractory materials industry, and coal industry. Especially in the coal industry, roller crusher can directly crush raw
coal after the removal of iron and impurity without removing the waste. The finished materials have a uniform particle size, low over-crushing ratio, so as to simplify the separation process as
well as reduce the investment and production cost.
Working Principle of Roller Crusher Machine
The main parts of roll crusher are two rollers, one fixed roller and one movable roller. The two rollers are driven by wheels and belts. When the roll crusher machine works, the movable roller is
pushed by the spring between the body and wheel to rotate forth and back. Materials fed by the vibrating feeder fall between the two rollers and get squeezed and crushed. Qualified particles will
through the teeth on the rollers and are exhausted out.
