Optical Tool Setter

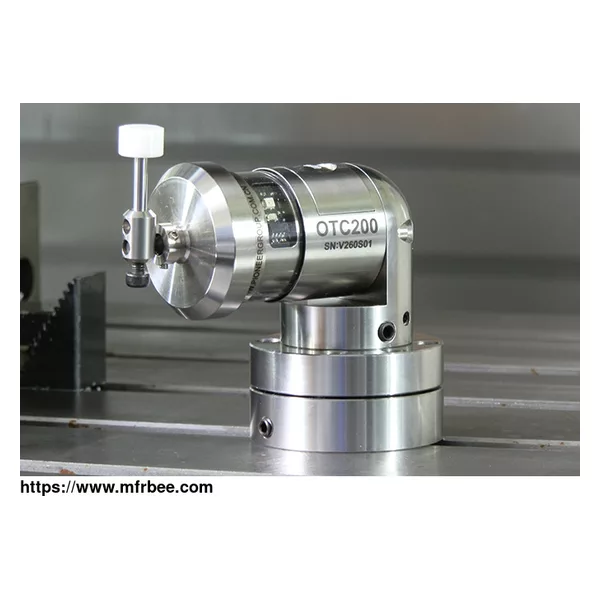

OTC200 optical tool setter/optical tool presetter is a wireless tool setter, optical coded signals are used to transmit information between the CNC tool setter and the receiver. It mainly used in various specifications of small to medium machining centers, CNC milling machines, drilling machines center, electronic touch off tool and so on. It used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.

OTC200 optical tool setter/presetter is a wireless tool setter, optical coded signals are used to transmit information between the CNC tool setter and the receiver. It mainly used in various specifications of small to medium machining centers, CNC milling machines, drilling machines center, electronic touch off tool and so on. It used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.

Technical Characteristics of tool pre setter

Tool setter switch on/off method: M code on/off；

Compatible with Pioneer optical modulated receivers (OSI-20M and OSI-30);

Exceptional resistance to light interference with modulated transmission;

Cable-free for unrestricted machine movement and ease of installation.

Application of Optical Tool Setter

For tool measuring on small to medium machining centers.

Detect broken tools in-process

Compensate for environmental and machine conditions

Reduce non-productive time and scrap and increase productivity and profits

Pioneer is a professional probe manufacturer, we provide touch probe, cnc probe tool, haas tool presetter, haas lathe tool presetter calibration, presetter tool, electronic touch off tool, tool measuring probe and etc. Want to know more? Please contact us.
