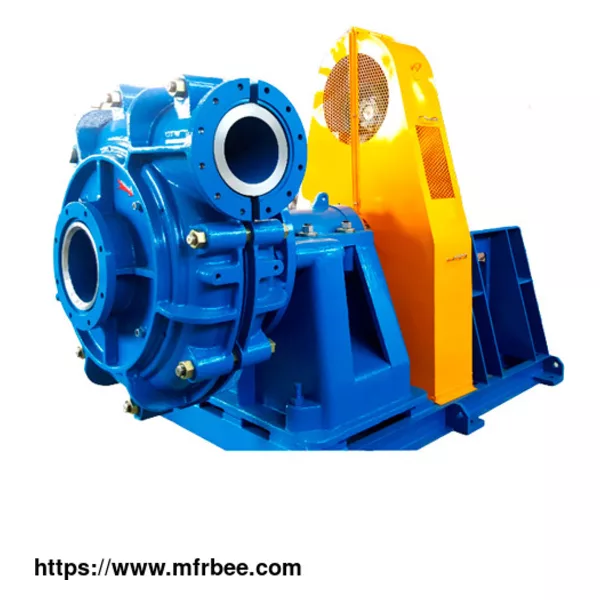

Heavy Duty Wholesale Horizontal Slurry Pumps

All Pumps Machinery supplies ZH, ZHR, ZHH, ZM, and ZL series Heavy Duty Wholesale Horizontal Slurry Pumps. Using latest wear-resistant 27% chromium alloy white iron is used for the part in contact with the medium, with a hardness of more than 62Hrc.

The China horizontal slurry pump peristaltic pump has extremely strong wear resistance and can resist strong abrasive and coarse particles to the maximum extent.

The China single stage horizontal slurry pump is widely used in mining, coal, metallurgy, electric power, building materials, and other industrial departments. This series of pumps are suitable for various liquid properties and is the first choice for treating mine slurry and tailings slurry. Different materials such as A05, A07, and A49 can be selected according to the medium conditions.

TYPES OF HEAVY DUTY CHINA HORIZONTAL SLURRY PUMPS

3inch x 2inch C Settling Slurries Coarser Particles Handling Slurry Pump

4inch x 3inch C Diamond Concentrate Cyclone Slurry Pump

6inch x 4inch Mill Discharged Tailing Delivery Slurry Pump

8inch x 6inch Power Plant Ash Removal Slurry Pump

10inch x 8inch E-ZM Fine Primary Mill Grinding Slurry Pump

10inch x 8inch FST Mineral Processing Cyclone Feed Slurry Pump

12inch x 10inch Heavy Duty Mine Dewatering Slurry Pump

16inch x 14inch Aggregate Processing Rough Solids Conveying Slurry Pump

ZH Alloy Slurry Pump

1.5inch x 1inch B Small Gold Mine Rubber Liners Slurry Pump

2inch x 1.5inch Polyurethane Erosion Resistant Material Lined Slurry Pump

3inch x 2inch C Gold Leaching Cyanide Slurry Pump

4inch x 3inch C Pulp And Paper Rubber Lined Slurry Pump

6inch x 4inch D Copper Ore Chemical Slurry Service Pump

8inch x 6inch E Pulp and Paper Industry Anti-Corrosive Rubber Slurry Pump

10inch x 8inch E-ZMR Corrosion Resistant Rubber Slurry Pump

10inch x 8inch F Rubber Lined Slurry Pump for Line Applications

ZHR Rubber Slurry Pump

VERTICAL VS HORIZONTAL CENTRIFUGAL PUMP

Vertical and horizontal shaft slurry pump, horizontal froth slurry pump, horizontal centrifugal slurry pumps are two of the most commonly used pumps in the industry. They share several similarities but have noticeable differences in their design and application. Horizontal centrifugal pumps have a horizontal shaft, making it ideal for applications with a limited height of installation space. On the other hand, the vertical centrifugal pump has a vertical shaft which is suitable for applications that require a limited footprint. Horizontal pumps experience less cavitation than vertical pumps, which makes them ideal for high discharge applications whereas vertical pumps create less noise than horizontal pumps. The choice of industrial slurry pumps depends on specific application requirements, space available, and operating conditions.

HOW DO HEAVY DUTY CHINA HORIZONTAL SLURRY PUMPS WORK?

The working principle of the anti corrosion slurry pump is that the slurry enters the pump through the eyes of the rotating impeller, and the impeller generates circular motion. The slurry moves outward under the action of centrifugal force and moves between the blades of the impeller. The slurry reaches high speed when it reaches the impeller edge. In the casing, its high-speed energy is converted into pressure energy. The pump increases the pressure of a liquid and solid particles by centrifugal force and converts electric energy into kinetic energy to pump slurry. This mechanism makes it easy and maintenance-free to pump hazardous and light slurries.

ADVANTAGES OF HEAVY DUTY CHINA HORIZONTAL SLURRY PUMPS

1. The frame plate has a replaceable wear-resistant metal gasket or rubber gasket. The impeller is made of wear-resistant metal or rubber.

2. The bearing assembly is of the cylindrical structure, and the impeller and the front lining is easy to remove completely during repair. Bearing assembly grease lubrication.

3. The shaft seal can adopt a packing seal, impeller seal and mechanical seal.

4. The discharge branch can be positioned and oriented at 45-degree intervals as required. To any eight locations to suit installation and application.

Advantages of Heavy Duty China Horizontal Slurry Pumps

As one of industrial pumps manufacturers, we can offer sorts of related products for sale, anything you need, please contact us.
