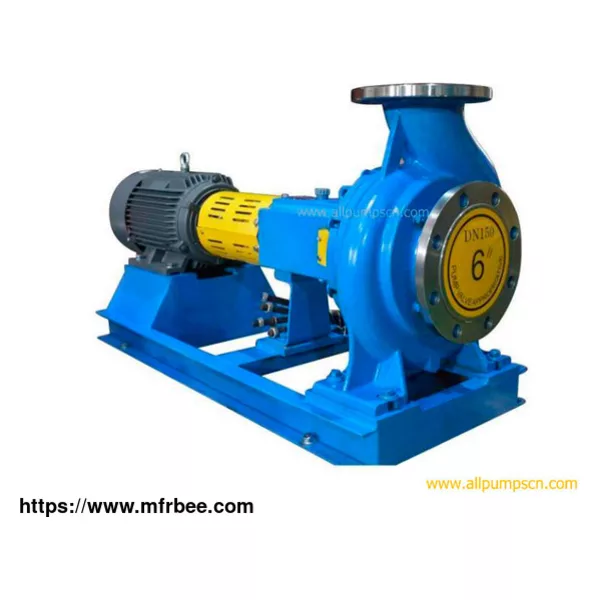

Horizontal SGZ type high-efficiency non-clogging and non-leakage centrifugal pulp pump is a new generation of pulp pump products developed by digesting and absorbing foreign advanced good suction
horizontal centrifugal pump and combining the requirements of domestic pulp enterprises for supply horizontal solids handling centrifugal pump. And operation, transportation is widely used in
papermaking, pulp and paper pulping enterprises. For bulk suction horizontal centrifugal pump price list, inquiry now!
FEATURES OF HORIZONTAL CENTRIFUGAL PULP PUMPS
1. The horizontal high pressure centrifugal pump is a rear door structure, and there is no need to disassemble the pipeline for maintenance;
2. The design pressure of the inlet and outlet flanges of the horizontal centrifugal pump is 1.6MPa;
3. Impeller blades (or six blades), open impeller, high efficiency, no need for axial thrust compensation, easy maintenance, and low probability of blockage;
4. The pump shaft adopts lubricating oil, which is seriously worn. It adopts imported cylindrical roller bearing and thrust ball bearing (radial angular contact ball bearing) combined bearing.
Cylindrical roller bearings are mounted on the pump end and radial thrust ball bearings are mounted on the rotating surface facing the end;
5. The main pump shaft sealing ring has six combinations of single-end seal, packing seal, single-end seal, mechanical seal series, double-end mechanical seal, pump seal, single-end seal and
dynamic seal. Users can choose the actual situation and requirements according to their needs;
6. The impeller adopts lost wax casting and dynamic balance check;
7. The materials are cast iron, cast steel, ordinary stainless steel and duplex stainless steel.
Want to explore the capabilities of a China single stage centrifugal pump? Get in touch with All Pumps Machinery and find out more about its features.
HORIZONTAL CENTRIFUGAL PUMP SPECIFICATIONS
Pump Connection Size
2.5"- 20" (65mm - 500mm)
Max. Pump Flowrate
3300m3/h (14531 GPM or 916L/S)
Max. Pump Head
100m (328 feet)
Motor Power Range
0.55kw to 110kw
Speed Range
750rpm to 2960rpm
Impeller Type
Opening three blades and Semi Open three blades
Shaft Sealing
Gland Packing, Mechanical Seal
Max. Working Pressure
2.5MPa
Max. Working Temperature
240°F / 120°C
Allowed Pumping Medium
Consistency≤6%
Materials of Construction
cast iron, cast steel, SS304/316, duplex, etc.
As one of horizontal pump manufacturers, we will do our best to meet all the needs of customers.
If you want to know more about suction horizontal centrifugal pump quotes , please visit our website.
If you are looking for a reliable industrial pumps company, please contact us, and we will be your best partner.
