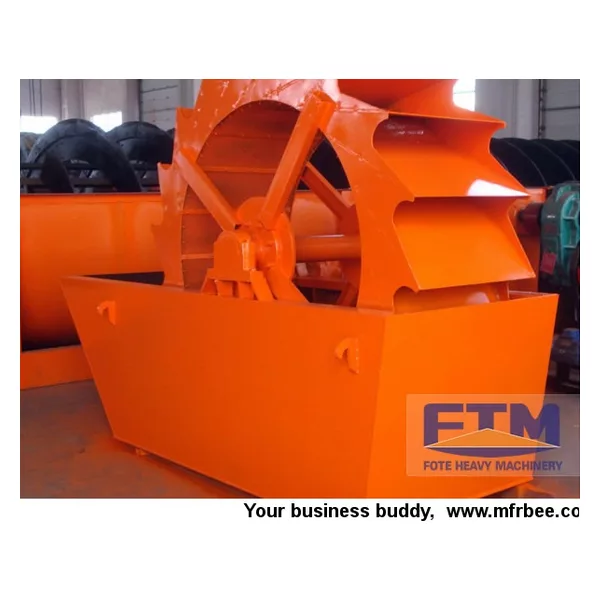

Sand Washer

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20

Wheel Bucket Diameter: 2200 - 3500

Processing Capacity: 15 - 200 t/h

Processible Materials: River sand and artificial sand.

Application Range: Sand making plant, mine field, construction, transportation, chemical engineering, water conservancy and concrete batching plant.

Introduction:

Sand washer is used to remove impurities in sand (such as dust). The sand washer is generally used to washing mechanism sand (made of stone crusher), so it is also known as stone washing machine. Sand washer is widely used to select materials by washing in gravel pits, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing stations and other industries. Because of their different appearances and working principles, it is also known as sand washing machine, artificial sand washer and spiral washer.

Applications:

Sand washing machine is widely used in sand plant, mine, building material, transportation, chemistry, water conservancy and hydropower and concrete mixing station for washing and separating materials as well as for the washing, classification and dehydration of small-sized sand and stone used in such departments as construction site, sand factory, glassworks and hydropower station.

Features:

1.Rational structure

2.Minimal loss of fine sand and powder,

3.Large capacity, small power consumption;

4.Long life, easy maintenance;

5.Energy saving.


Working Principle:

When spiral washer works, the power plant drives the impeller to slowly rotate after slowing down through the V-shaped belt, reducer and gear, and sand and stone materials go into the washing chute from the material cabin, and roll driven by the impeller and grind with each other to remove the impurities covering the surface of the sand and stone materials, and at the same time break the moisture layer coated on the sand particles for the purpose of dehydration. In the meantime, add water in it to form a strong water flow to timely wash away the impurities and foreign matters with small proportion and discharge them from the overflow port to complete the washing process.


Technical Datas of Sand Washer

Specification XS2200 XS2600 XS2900 XS3500
Wheel bucket diameter
(mm)
2200 2600 2900 3500
Rotation Speed
(r/min)
1-2 1-2 0.8-1.5 0.8-1.2
Processing capacity (t/h) 15-30 20-50 50-100 120-200
Motor power
(kw)
4 5.5 7.5 11
Total weight
(kg)
4300 5600 8100 9900
Dimensions (L×W×H)
(mm)
3150×1910×2280 3520×2390×2690 3820×2640×3200 4420×2930×3800
