Cone Crusher

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20

Feed Size: 65 - 300 mm

Processing Capacity: 12 - 1000 t/h

Processible Materials: Granite, basalt, quartz stone, iron ore, pebbles, green stone, copper ore and limestone.

Application Range: Metallurgy, construction, road construction, chemical engineering, phosphate industry and mining.

Main Features:

1.High production capacity, stable performance;

2.Long life, low operating cost;

3.Easy maintenance.

4.Large crushing ratio, low loss, high efficiency;

5.Uniform particle size.

Cone Crusher Introduction:

Cone crushers are also known as cone breakers. It adoptes the latest technology developed in Germany and reached the world's advanced level. The new cone crusher not only improves the production capacity and crushing efficiency, but also expands the range of applications.

It provides unparalleled performance in a variety of broken pieces, fine, super fine crushing operations. Cone crusher is widely used in metallurgy, building materials, mining, chemical and other industries to crush medium or above medium hardness materials like iron ore, copper ore, limestone, quartz, granite, sandstone and others.

Fote is one of the famous hydraulic spring cone crusher suppliers, symons cone crusher manufacturers in China. The rock cone crusher prices are very low. Welcome to choose Fote product. We will always at your service.

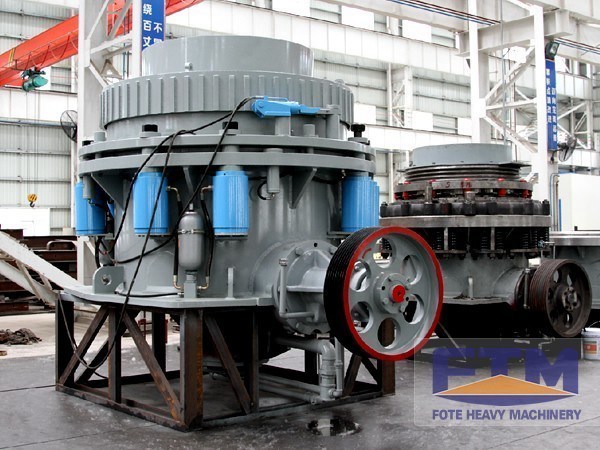

cone crusher

Cone Crusher Working Principle:

When cone crusher begins to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

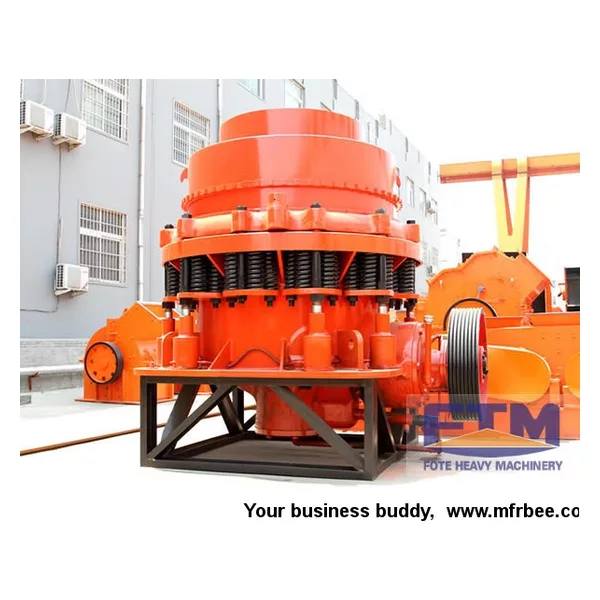

Cone Crusher

Technical Datas of Cone Crusher

Model Diameter of crushing cone
(mm)
Max.feeding size
(mm)
Width of discharge opening
(mm)
Processing capacity
(t/h)
Motor power
(kw)
Swing frequency of main shaft Total weight
(t)
Dimensions(L×W×H)
(mm)
PYB 600 600 65 12-25 40 30 356 5 2234×1370×1675
PYD 35 3-13 12-23 5.5 2234×1370×1675
PYB 900 900 115 15-50 50-90 55 333 11.2 2692×1640×2350
PYZ 60 5-20 20-65 11.2 2692×1640×2350
PYD 50 3-13 15-50 11.3 2692×1640×2350
PYB 1200 1200 145 20-50 110-168 110 300 24.7 2790×1878×2844
PYZ 100 8-25 42-135 25 2790×1878×2844
PYD 50 3-15 18-105 25.3 2790×1878×2844
PYB 1750 1750 215 25-50 280-480 160 245 50.3 3910×2894×3809
PYZ 185 10-30 115-320 50.3 3910×2894×3809
PYD 85 5-13 75-230 50.2 3910×2894×3809
PYB 2200 2200 300 30-60 59-1000 280-260 220 80 4622×3302×4470
PYZ 230 10-30 200-580 80 4622×3302×4470
PYD 100 5-15 120-340 81.4 4622×3302×4470
