Tertiary Crusher
Product Quick Detail
- China
- Henan
- Packaging
- standard containers, bare main machine, motors and small parts are packed in wooden cases.
- Delivery
- 20
Specifications
Feeding Size: <120 - <190 mm
Discharging Size: 5 - 10 mm
Power: 37 - 315 kw
Theoretical Weight: 3.9 - 49.7 t

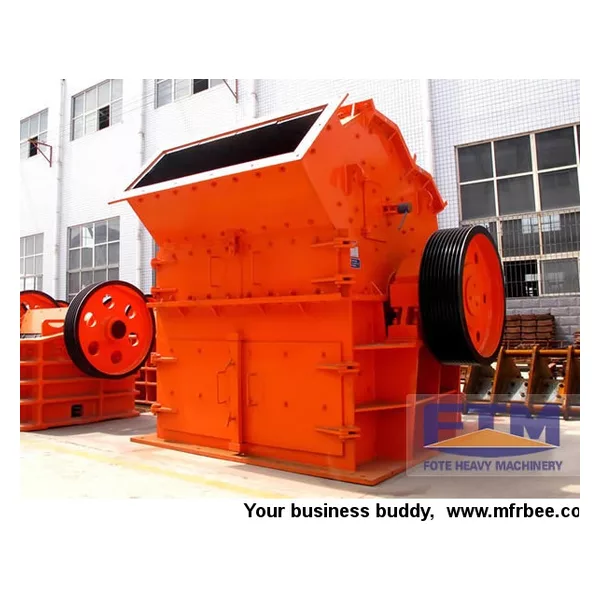

Tertiary Crusher Introduction:
Tertiary crusher is widely used, and it is the most effective, practical and reliable gravel machine. Tertiary crusher IS suitable for crushing all kinds of brittle materials, such as coal, gangue, coke, slag, fine sandstone, shale, loose limestone.
The crushing materials should with the compressive strength less than100Mpa and the surface of the water is no more than 15%. It is usually used to make grinding material, conduct fine crushing and medium crushing for the brittle materials like refractories, cement, quartz sand, grit, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate, etc.
Tertiary Crusher Features:
Five designing features of the high efficient fine crusher: high line speed, abrasion resistance materials, machine structure, design of the grid plate and the influence of rigidity attrition crushing. All these features make the fine crusher able to effectively control the secular stability of discharging granularity. Fine crusher also has advantages of high crushing efficiency, low consumption, dust prevention, long service life of quick-wear parts, low cost of fittings, high running rate and simple maintenance.
.jpg)

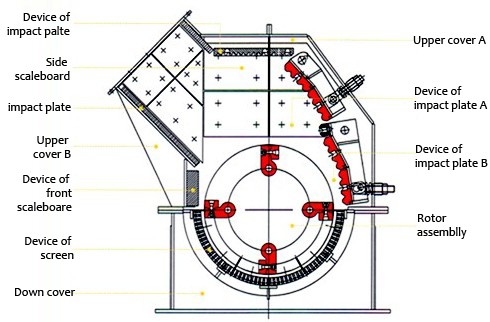

Tertiary Crusher Working Principle:
Advantages and features of the high efficient fine crusher: materials entering the cavity successively fall on the high speed spinning hammer and get crushed for the first time at the hammering zone under the action between the hammer and counter board. After high-frequency hammering and striking, materials fall on the median septum piling up and then they slide down on the bottom dumping disk of the high speed spinning rotor. Then materials are thrown to the impact plate at high speed and then are enforced to be impact, crushed and ground when passing the mobile board hammer.
Technical Datas of Tertiary Crusher:
| PXJ tertiary impact crusher | Rotorø×Width (mm) | Rotorø×Width (mm) | Rotorø×Width (mm) | Rotorø×Width (mm) |
| Specification | 800×400 | 800×600 | 800×800 | 1010×1010 |
| Feed opening size(mm) | 400×185 | 500×250 | 550×300 | 1000×350 |
| Feeding size (mm) | <120 | <180 | <180 | <180 |
| Discharging size (mm) | 5-10 | 5-10 | 5-10 | 5-10 |
| Adjustable range of discharge opening (mm) | 5-50 | 5-50 | 5-50 | 5-50 |
| Cement Clinker(t/h) | 10-30 | 18-40 | 20-45 | 25-55 |
| Limestone(t/h) | 18-45 | 23-55 | 28-65 | 35-75 |
| Power(kw) | 37 | 37 | 45 | 55 |
| Theoretical weight(t) | 3.9 | 4.5 | 6 | 10.5 |
| PXJ tertiary impact crusher | Rotorø×Width (mm) | Rotorø×Width (mm) | Rotorø×Width (mm) | Rotorø×Width (mm) |
| Specification | 1200 ×1200 | 1400 ×1400 | 1600 ×1600 | 1800 ×1800 |
| Feed opening size(mm) | 1200 ×450 | 1500 ×500 | 1600 ×550 | 1800 ×800 |
| Feeding size (mm) | <180 | <190 | <190 | <190 |
| Discharging size (mm) | 5-10 | 5-10 | 5-10 | 5-10 |
| Adjustable range of discharge opening (mm) | 5-50 | 5-50 | 5-50 | 5-50 |
| Cement Clinker(t/h) | 50-110 | 50-150 | 85-210 | 125-270 |
| Limestone(t/h) | 45-100 | 50-150 | 95-260 | 140-310 |
| Power(kw) | 110 | 160 | 250 | 315 |
| Theoretical weight(t) | 14.4 | 22 | 35 | 49.7 |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Asia,Emerging Markets,Middle East,Oceania
- Founded Year:2014
- Address:河南省郑州国家高新技术产业开发区檀香路8号
- Contact:fotemachinery china
