Three Phase ADW300
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 3-5 working days
Specifications

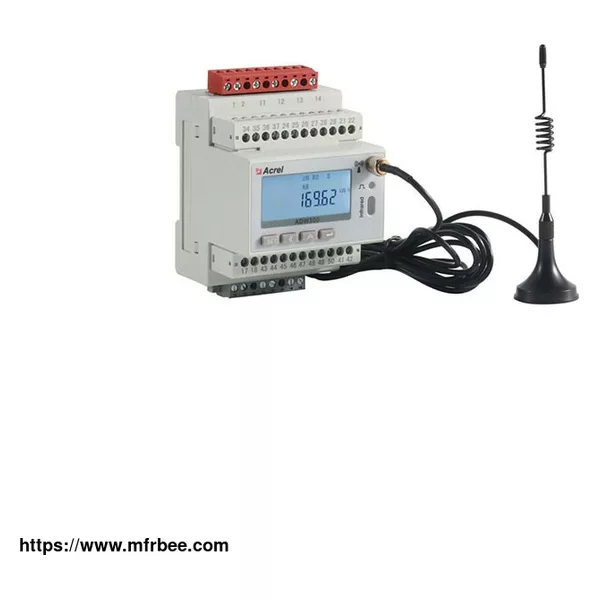

Acrel ADW300 wireless smart energy meter can be used for different applications. Acrel ADW300 is three phase wireless energy meter with RS485/LoRa/GPRS/4G/WF.
Technical Parameter ADW300
Input voltage 3×220/380Vac , 3×380/660Vac
Input current 3×1(6)A
Accuracy(active) Class 0.5s
Basic function measure U、I、P、Q、SP、F、Hz
power demand and real-time current
2~31st voltage and current harmonic
Optional function /C: RS485(Modbus-RTU)
/K: 4DI/2DO
/T: four-way temperature measurement
/L : 1 channel residual current
/LR: LoRa wireless communication
/4G: 4G communication
/WF: WIFI communication
333mV access
Rogowski coil (200mV) access
Power supply AC/DC 85~265V
Standard IEC 62053-22:2003，IEC 62053-21:2003
Dimension 93*72*88mm
Weight 0.3kg
Now the price of wireless energy monitor for smart meters is reasonable, if you are interested, please leave us a message.
If you want to know more kinds of power meter china, please visit our website.
