Compound Crusher

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20 Days

Feed Size: 50 - 100 mm

Processing Capacity: 5 - 100 t/h

Processible Materials: Iron ore, coal, clinker, limestone, dolomite, flint clay, lead zinc ore, serpentine, blast furnace slag, gangue and phosphate ore.

Application Range: Construction material industry, mining, metallurgy, chemical engineering, etc.

Compound Crusher Introduction:

Compound crusher, also known as vertical compound crusher, compound stone crusher and stone compound crusher, is adjustable fine crushing machine without grate bar which is widely used for the fine crushing of raw materials and clinker in cement plant.; at the same time, it can also be used for the fine crushing of materials with medium hardness such as dolomite, flint clay, lead-zinc ore, serpentine, blast furnace slag, coal gangue and phosphate rock and it is especially suitable for artificial sand making with hard limestone, dolomite, granite and basalt or for processing stone materials used for highway pavement.

The combination crusher can crush large materials with high moisture content, so it’s the ideal machine in sand production line and stone crushing line. The vertical crusher adopts the no-grizzly-bar structure to avoid blocking. Materials that can’t be crushed will be discharged from the crusher without causing damage to the machine. The compound crusher can directly crush materials with medium hardness such as iron ore, sandstone, gypsum, blast furnace slag, coal, etc.

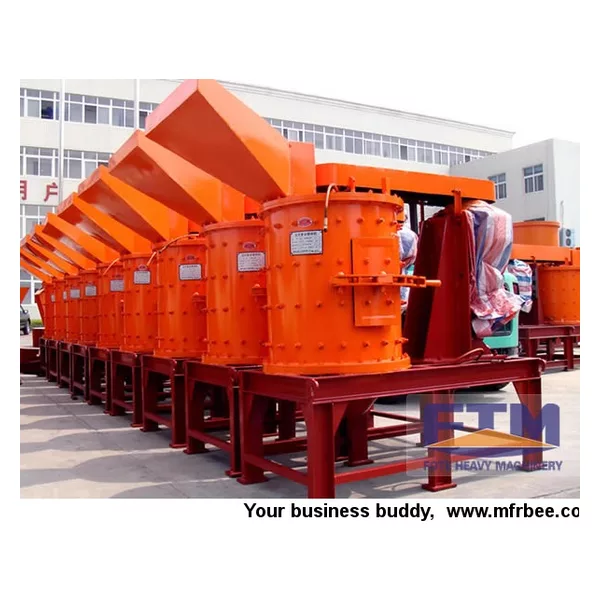

Compound Crusher

Compound Crusher Features:

1. Simple and reasonable structure, low running costs, large crushing rate, energy saving.

2. The impact crusher is with functions of fine crushing and coarse grinding.

3. Moisture content of raw material has little impact on the crushing efficiency of combination crusher.

4. Noise below 75 decibels (db level), less dust pollution.

5. Suitable for crushing medium-hard and extra-hard materials.

6. Little lining wear, easy maintenance.

Compound Crusher Working Principle:


Materials fall into the high speed spinning impeller from the top of the machine, and get crashed and crushed at high speed with the other materials spreading around the impeller in an umbrella shape under the high speed centrifugal action. After materials hit each other, they get further crashing, grinding and crushing in eddy current between the impeller and the chassis. Then they are discharged from the bottom barrel, forming multiple closed circuit recycling process. The finished product particle size is controlled by the screening machine.


Technical Datas of Compound Crusher

Model 800 1000 1250 1500 1750
Rotor diameter (mm) 650 800 1000 1250 1560
Cylinder height(mm) 800 850 850 1000 1410
Main shaft rotation speed (r/min) 1350 970 740 650 600
Feeding size(mm) 50 70 100 100 100
Discharging size (mm) 0-5 0-5 0-5 0-5 0-5
Processing capacity (t/h) 5-15 10-30 20-60 30-80 40-100
Motor Power(kw) 30 55 75 110 132
Rotation speed 1440 1440 750 750 750
Dimensions(L×W×H)(mm) 2200×860×1980 2700×1160×2000 2800×1400×2730 3100×1900×2300 3350×2100×2800
Total weight (t) 2.3 4.5 9.73 18.1 26.61
