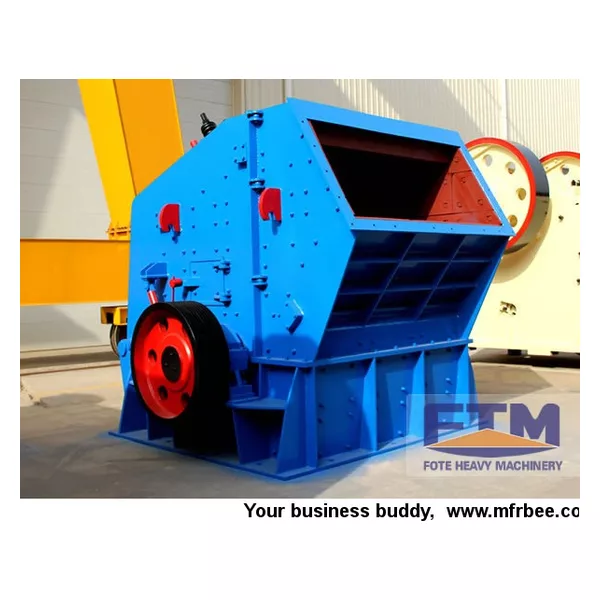

Impact Crusher

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20 Days

Feed Size: 300 - 700 mm

Processing Capacity: 30 - 550 t/h

Processible Materials: Soft and medium hard minerals: limestone, feldspar, calcite, barite, talc, rare earth, clay, kaolin, gypsum, graphite, etc.



Impact Crusher Introduction:

The impact crusher also can be called impact breaker, impact crushing machine, impact pulverizer, impactor crusher and impact stone crusher. Impact crusher can crush materials with side length not more than 300mm and compressive strength not more than 260 Mpa such as granite, limestone and pebble, and the impact breaker features the following advantages: small size, simple structure, high crushing ratio, low energy consumption, high yield, even product particles and so on.

Impact Crusher Features:

1. The impact crusher has high crushing ratio of 40, thus simplifying the crushing process from three-stage crushing to two-stage crushing or one-stage crushing.

2. It’s simple to adjust the space between the impact plate and the plate hammer, so material size is easy to be controlled.

3. The chromium plate hammer is featured in shock resistance, abrasion resistance and great impacting force.

4. The whole impact crusher has realized seamless connection, which makes it easy to maintain and economical and durable to apply.

5. The impact crusher has complete function, high production and high overall efficiency.


Impact Crusher Working Principle:

Stone materials fall from the upper end of the impact crusher directly into the high-speed revolution rotary table. Under the high speed centrifugal action, these materials have high velocity impact with those flying stones at high speed spreading all around the turntable in an umbrella shape and get crushed in high density. After materials are impact from each other, they will move in eddy current between the turntable and the main case of the impact crusher and then they have multiple striking, rubbing and crushing until they are discharged from the bottom tank. The impact crusher adopts closed circuit manifold cycles and makes sure the particle size of the materials controlled by the screening equipment.

Technical Datas of Impact Crusher

Model Specifications
(mm)
Feed opening
(mm)
Max.feeding side length
(mm)
Capacity
(t/h)
Power
(kw)
Total weight
(t)
Dimensions
( L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 45-55 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 200 27 3180×2720×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 700 600-800 630-710 83.21 4400×3866×4009
