Ball Mill

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20 Days

Feed Size: ≤20 - ≤25 mm

Processing Capacity: 1.5 - 338 t

Processible Materials: Coal, salt, chalk, gypsum, tile, limestone, etc.

Application Range: Cement, silicate product, new building materials, refractory matter, chemical fertilizer, ferrous and non-ferrous metals, glass ceramic, etc.

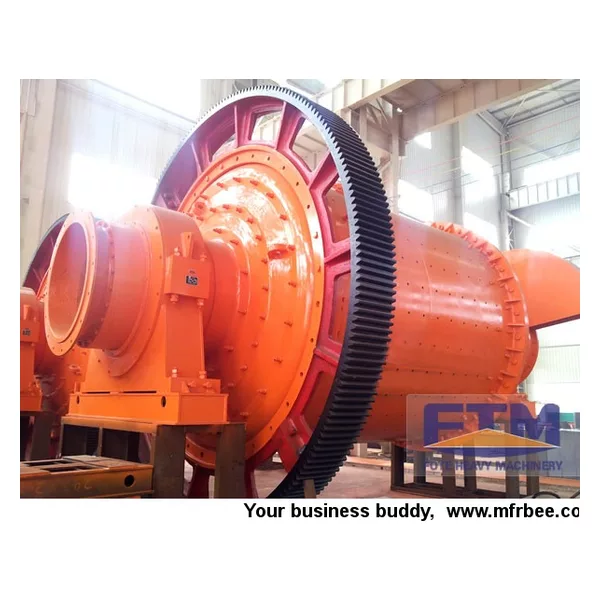

Ball Mill Introduction

Ball mill also can be called ball mills or grinding mills, is the key equipment for grinding materials after materials are being primarily crushed. Ball mill is widely used for grinding all kinds of ores and other grindable materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry. According to different raw materials and discharging methods, ball grinding mill can be divided into dry type ball mill and wet type lattice ball mill.

Fote is a professional ball mill manufacturer, producing ball mill with verious models, welcome to visit our company for cooperation, thank you.

Ball Mill Features

1. Improved grinding efficiency.

2. The ball mill grinder is with large discharging mouth and high production capacity.

3. Easy to install and maintain.

Ball Mill Working Principle

1. Ball mill is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process.

2. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many grinding balls with different specifications.

3. The cylinder of ball mill rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials.

4. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are grinding balls to further grind the materials.

5. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

Technical Datas of Ball Mill

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Φ 900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.5
Φ 900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.7
Φ 1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
Φ 1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
Φ 1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Φ 1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 16.8
Φ 1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
Φ 1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Φ 1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 29
Φ 1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 35.5
Φ 1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Φ 1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Φ 2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34.8
Φ 2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
Φ 2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 56.6
Φ 2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 51.8
Φ 2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 60
Φ 2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62
Φ 2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Φ 2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Φ 2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 69
Φ 2700×4000 20.7 40 ≤25 0.074-0.4 12-80 380 94
Φ 2700×4500 20.7 48 ≤25 0.074-0.4 12-90 480 102
Φ 3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 137
Φ 3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 158
Φ 3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 175
Φ 3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
Φ 4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
Φ 4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
Φ 4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
Φ 4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
Φ 5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
Φ 5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
Φ 5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525
