Flotation Machine
Product Quick Detail
- China
- Henan
- Packaging
- standard containers, bare main machine, motors and small parts are packed in wooden cases.
- Delivery
- 20 Days
Specifications
Effective Volume: 0.37 - 8 m³
Processing Capacity: 0.2 - 8 m³/min
Processible Materials: Non-ferrous and ferrous metals (copper, zinc, lead, nickel, gold, manganese, titanic iron ore, apatite, etc), non-metals (fluorite and talc), etc.

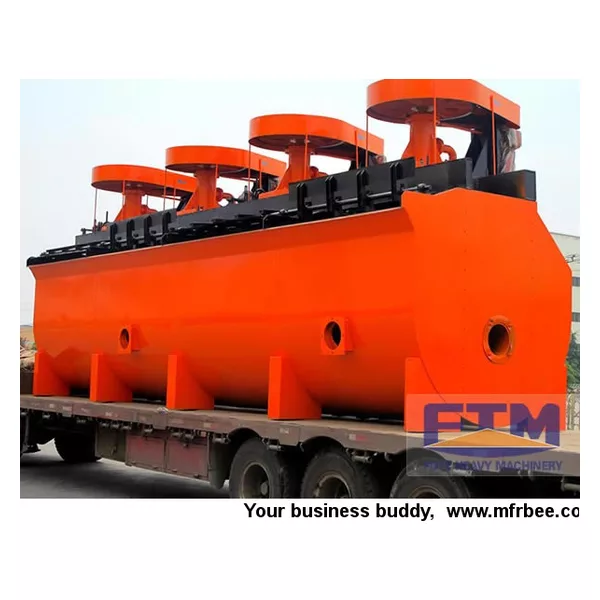

Flotation Machine Introduction:
In order to achieve the separation of mineral particles, mineral surface must have different wettability, and required quantity and quality of foam and proper mechanical equipment are needed for making them into products with different nature and quality, and the proper mechanical equipment is flotation machine (flotation cell, flotation-cell, flotation cells or flotation concentrator). Flotation machine is important equipment to achieve flotation process, and the performance of flotation machine has a significant relationship with the flotation effect.
.jpg)

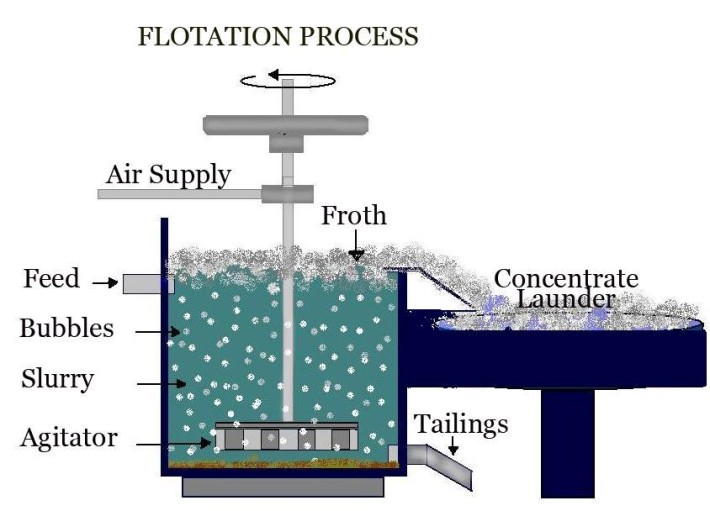

Flotation Machine Working Principle:
Flotation cells run by the triangle belt of the electrical motor driving the impellor to rotate, producing centrifugal effect which will form negative pressure, and on one hand it will absorb sufficient air in order to mix with the pulp, and on the other hand it will mix the pulp in order to mix with the reagents, and at the same time will refine the foam in order to stick the minerals onto the foam, and float on the surface of the pulp in order to become mineralization foam. The workers can adjust the height of the flashboard and control the liquid level in order to scrap the useful foam.
.jpg)
Technical Datas of Flotation Machine
| Model | Trough cubage (m³) | Inside dimensions (L×W×vH) (m) | Air suction amount (m³ /m² · min ) | Power (kw) | Motor model | Processing capacity (m³ /min ) | Single trough weight (kg) |
| BF-0.37 | 0.37 | 0.74×0.74×0.75 | 0.9~1.05 | 1.5 | Y90L-4 | 0.2~0.4 | 470 |
| BF-0.65 | 0.65 | 0.85×0.95×0.9 | 0.9~1.10 | 3.0 | Y132S-6 | 0.3~0.7 | 932 |
| BF-1.2 | 1.2 | 1.05×1.15×1.10 | 1.0~1.10 | 5.5 4.0 | Y132M2-6 Y132M1-6 | 0.6~1.2 | 1370 |
| BF-2.0 | 2.0 | 1.40×1.45×1.12 | 1.0~1.10 | 7.5 | Y160M-6 | 1.0~2.0 | 1750 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9~1.10 | 11 | Y180L-8 | 1.4~3.0 | 2130 |
| BF-4.0 | 4.0 | 1.9×2.0×1.2 | 0.9~1.10 | 15 | Y200L-8 | 2~4 | 2585 |
| BF-6.0 | 6.0 | 2.2×2.35×1.3 | 0.9~1.10 | 18.5 | Y225S-8 | 3~6 | 3300 |
| BF-8.0 | 8.0 | 2.25×2.85×1.4 | 0.9~1.10 | 22 30 | Y225M-8 Y250M-8 | 4~8 | 4130 |
| BF-10 | 10 | 2.25×2.85×1.7 | 0.9~1.10 | 22 30 | Y225M-8 Y250M-8 | 5~10 | 4660 |
| BF-16 | 16 | 2.85×3.8×1.7 | 0.9~1.10 | 37 45 | Y280S-8 Y280M-8 | 8~16 | 8320 |
| BF-20 | 20 | 2.85×3.8×2.0 | 0.9~1.10 | 37 45 | Y280S-8 Y280M-8 | 10~20 | 8670 |
| BF-24 | 24 | 3.15×4.15×2.0 | 0.9~1.10 | 45 | Y280M-8 | 12~24 | 8970 |
Related Products
Spiral Chute Separator
Stirring Tank
Shaking Table

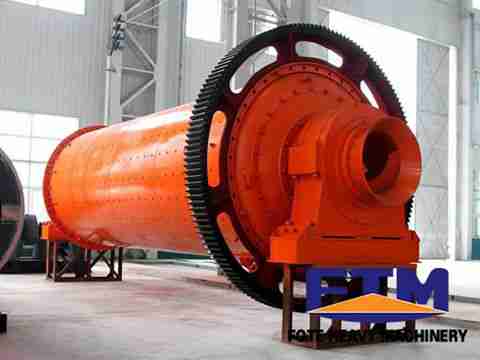

Chinaware Ball Mill
