Classifier

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20 Days

1. Consume low-energy

2. High-efficiency

3 .High-precision,

4. Large output

5. High degree of automation


Spiral classifier is widely used in the concentrator with ball mill to create a closed loop process of triage process ore sand, in grading ore and fine clay in the gravity concentrator, in grading the particle size of pulp in metal beneficiation process and in demud and dehydration operations in ore washing work. With a simple structure, the machine is reliable and easy to operate.

The sand classifier is mainly composed of transmission classification, spirochetes, tank, the lifting mechanism, the lower bearing (bush) and a discharge valve.

Fote is a well-known spiral classifier machine manufacturer in China. The product has high quality and guaranteed service. What's more, the screw classifier price is quite reseaonable.

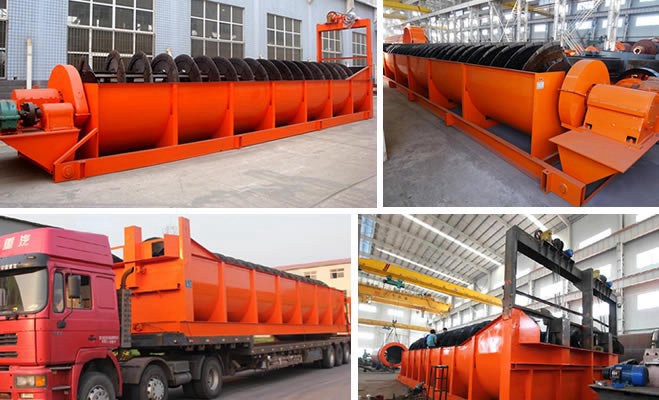

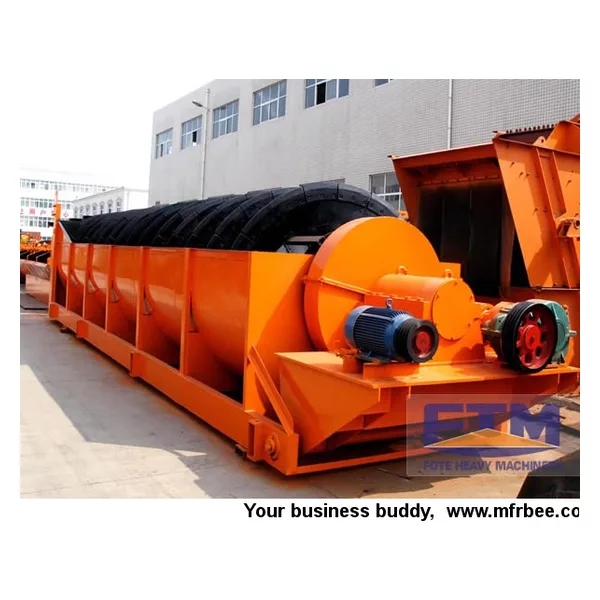

Spiral classifier

1. Spiral classifier is a type of classifying machine that classifies materials based the principle that the solid particles with different sizes and proportions have different falling speed in the liquid, and fine ore particles float in the water and coarse ore particles sink to the bottom of the chute and the coarse ore particles are pushed by the spiral to the upper part and discharged.

2. This machine is able to filter the powdery particle crushed by the grinding mill and whirl the coarse particles with the spiral to the feeding mouth of the grinding mill and discharge the filtered fine particles.

3. The pedestal of this machine is made of U-steel, and the rack is welded with steel plate. The water feeding head and spindle nose of the spiral shaft are made of cast iron with wear-resisting and durable property and the lifting device is divided into power-operated type and manual-operated type.www.china-ftm.com/pros/classifier.html

Technical data

Model Spiral diameter
(mm)
Spiral rotation speed
(r/min)
Trough length
(mm ≤)
Motor power(kw≤) Dimensions(L×W×H)(mm≤) Machine weight
(t)
For driving For lifting Length Width Height
FG-3 300 12-30 3000 1.1 -- 3850 490 1140 0.7
FG-5 500 8-12.5 4500 1.1 -- 5430 680 1480 1.9
FG-7 750 6-10 5500 3 -- 6720 980 1820 3.1
FG-10 1000 5-8 6500 5.5 -- 7590 1240 2380 4.9
FC-10 8400 7.5 -- 9600 1240 2680 6.2
FG-12 1200 4-6 6500 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 15 4.4 8230 2790 3110 15.8
2FC-12 8400 15 4.4 10370 2790 3920 17.6
FG-15 1500 4-6 8300 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 15 4.4 10410 3390 4080 22.1
2FC-15 10500 15 4.4 12670 3370 4890 30.7
FG-20 2000 3.6-5.5 8400 11-15 3 10790 2530 4490 20.5
FC-20 12900 11-15 3 15610 2530 5340 28.5
2FG-20 8400 22-30 6 11000 4600 4490 35.5
2FC-20 12900 22-30 6 15760 4600 5640 48.7
FG-24 2400 3.67 9130 15 3 11650 2910 4970 26.8
FC-24 14130 18.5 4 16580 2930 7190 41.0
2FG-24 9130 30 6 12710 5430 5690 45.8
2FC-24 14130 37 8 17710 5430 8000 67.9
2FG-30 3000 3.2 12500 40 8 16020 6640 6350 73.0
2FC-30 14300 --- --- 17091 --- 8680 84.8
