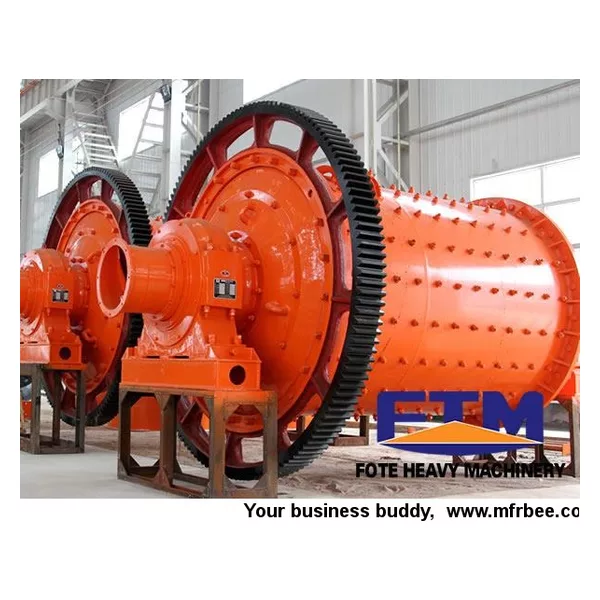

Cone Ball Mill

Feeding Size: ≤20 - ≤25 mm

Capacity: 0.65 - 615 t/h

Discharging Size: 0.074 - 0.4 mm

Total Weight: 5.5 - 525 t

Cone Ball Mill Introduction：

Cone ball mill (other name: energy-saving ball mill or ball mill machine) is a common ball mill in mineral dressing process. The structure of conical ball mill is different from intrinsic ball mill, because its body and chassis are integration, so the user can put them down on the basic plane at one time when install them. The main bearing of conical ball mill uses double raw self-aligning roller bearing, which can reduce 30% energy consumption, and improve its fine grit and processing capacity by 15 ~ 20% times.

Cone Ball Mill Features：

1. Cone ball mill can be installed horizontally, vertically and slantingly.

2. It is with large starting torque and vibration.

3. Steady and reliable running.

Cone Ball Mill Working Principle：

Cone ball mill is a horizontal cylindrical rotating device. It is a grate ball mill with two cells. Materials enter evenly into the first house from feeder machine to material hollow shaft. There are stepped lining plates, corrugated plates and ball mills in the cell. The barrel rotates, producing centrifugal force which brings ball mills at a certain height. Then the ball mills fall down, hitting and grinding materials. After coarse crushing in the first house, materials enter into second house though a single every warehouse. There are plane liners and ball mills in this house. Materials are grinded again in this house. The powders are discharged out by unload plate.
