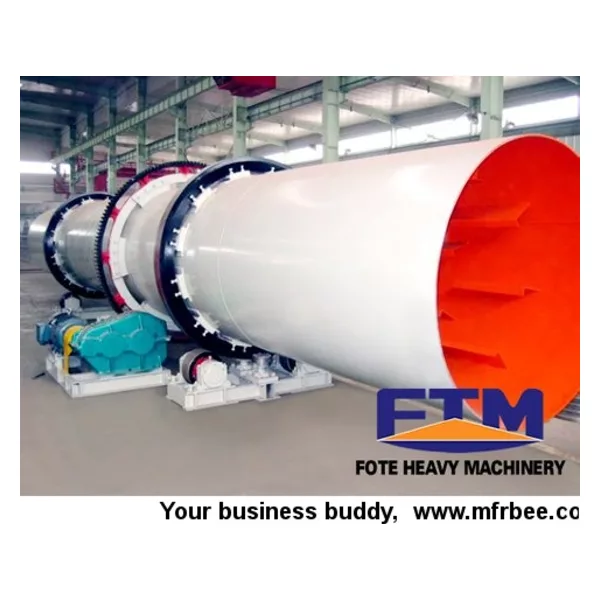

Bentonite Dryer
Product Quick Detail
- China
- Henan
- Packaging
- standard containers, bare main machine, motors and small parts are packed in wooden cases.
- Delivery
- 20 Days
Specifications
Cylinder Capacity: 9 - 285 m³
Production Capacity: 1.9 - 76.0 t/h
Application Range: Industries of mining, ore beneficiation, construction materials and chemical engineering.
Processible Materials: Slime, raw coal, flotation clean coal, mixing clean coal, slag, clay, bentonite, limestone, sand, quartz stone, metal concentrate, waste residue and tailings.
Bentonite Dryer Introduction：
Bentonite dryer or kaolin drying machine is generally applied to drying granular materials, also available for drying adhesive materials, pasty materials, or materials with high moisture content. Bentonite dryer can be used for drying materials in cement, mining, building materials, chemical industry, food, fertilizer production and other industries.
Bentonite Dryer Features：
1. Bentonite dryer has large capacity, low fuel consumption and low drying cost.
2. Bentonite dryer has the characteristic of high temperature resistant, so it can dry material by using hot air with high temperature.
3. High scalability, the design considers the production margin, so modest increasing in output is OK without changing equipment.
4. The dryer equipment adopts the structure of spherical tug, and the tug and roll ring fits well, significantly reducing wear and tear and power consumption.
5. Specifically designed retaining structure greatly reduces the horizontal thrust due to tilt running of the device; Strong resistance to overload, and the cylinder of the dryer is with stable operation and high reliability.
Bentonite Dryer Working Principle：
Material fed into the Rotary dryer by feeding device, then lifted to a certain height by lifting plate installed in the dryer, and will be crushed by high-speed rotating blade when items falling down, repeat the process until materials be discharged through the discharge mouth. The hot air produced by the direct combustion hot blast stove enters into the dryer and makes full contact with the material, to dry the material rapidly, and then the dried material will be discharged through the conveyor installed at the discharge end of dryer. Staggered various lifting board with different perspectives are welded inside the dryer from front to back. In order to prevent shuffling, door ring and spiral lifting board are designed at the feed end. Kaolin dryer is installed on the roller device through the front and rear bearing device, and the blocking-wheel on the rear wheel is designed to control the axial motion of the dryer. Kaolin drying machine rotation is driven by the gearing through the rotation of fixed gears on the dryer.
Technical Datas of Bentonite Dryer
| Specification(mm) | Rotating Speed(r/min) | Obliquity(%) | Inlet Air Temperature(℃) | Production Capacity(t/h) | Power(KW) | Weight(t) |
| Φ600×6000 | 3-8 | 3-5 | ≤700 | 0.5-1.5 | 3 | 2.9 |
| Φ800×8000 | 3-8 | 3-5 | ≤700 | 0.8-2.0 | 4 | 3.5 |
| Φ800×10000 | 3-8 | 3-5 | ≤700 | 0.8-2.5 | 4 | 4.5 |
| Φ1000×10000 | 3-8 | 3-5 | ≤700 | 1.0-3.5 | 5.5 | 5.6 |
| Φ1200×10000 | 3-8 | 3-5 | ≤700 | 1.8-5 | 7.5 | 14.5 |
| Φ1200×12000 | 3-8 | 3-5 | ≤700 | 2-6 | 11 | 14.8 |
| Φ1500×12000 | 2-6 | 3-5 | ≤800 | 3.5-9 | 15 | 17.8 |
| Φ1800×12000 | 2-6 | 3-5 | ≤800 | 5-12 | 18 | 25 |
| Φ2200×12000 | 1.5-6 | 3-5 | ≤800 | 6-15 | 18.5 | 33 |
| Φ2200×18000 | 1.5-6 | 3-5 | ≤800 | 10-18 | 22 | 53.8 |
| Φ2200×20000 | 1.5-6 | 3-5 | ≤800 | 12-20 | 30 | 56 |
| Φ2400×20000 | 1.5-5 | 3-5 | ≤800 | 18-30 | 37 | 60 |
| Φ3000×20000 | 1.5-5 | 3-5 | ≤800 | 25-35 | 55 | 78 |
| Φ3000×25000 | 1.5-5 | 3-5 | ≤800 | 32-40 | 75 | 104.9 |
