Weight: 4-230 t
Production Capacity: 0.5-50 t/h
Application Range: Industries of metallurgy, construction materials, chemical engineering, coal washing, chemical fertilizer, mining, sand making, clay, kaolin and sugar production.
Processible Materials: Alfalfa, distillers’ grains, straw, saw dust, marigold, wood shavings, ginkgo leaf, Chinese herbal medicine, bear’s grain, wine’s grain, potato starchy residue, manioc waste, barley malt, melon seed, begasse, hawthorn, rape seed cake, vegetables.

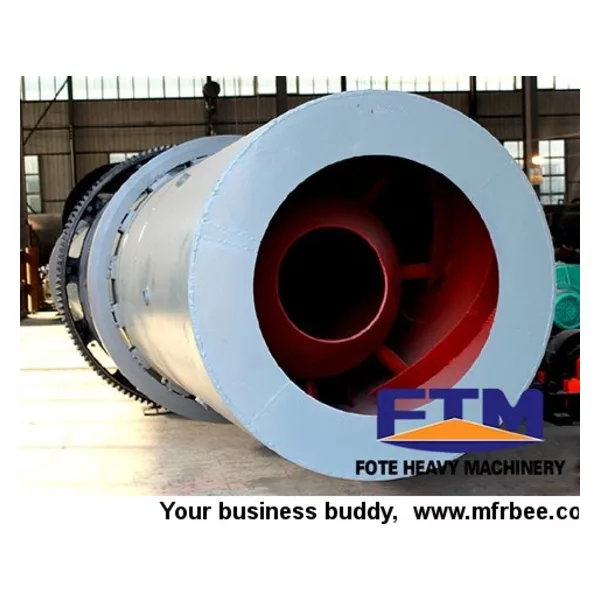

Drum Dryer Introduction:
Drum dryer, also named as roller dryer, rotary drum dryer and rotary drying, is energy-saving and high efficient drying equipment improved on the basis of original dryer. Drum dryer has reached to the international advanced level through continuous improvement, which can not only deal with high moisture materials with low viscosity, but also the high moisture material with high viscosity.
Drum dryer is suitable for drying metal and nonmetal materials, clay in cement industry, coal slime in coal-mining industry and other materials.
Drum Dryer Features:
1. No air leakage phenomenon, completely solve the sealing difficulties and can be installed within two hours.
2. Demand final moisture indicator can be easily controlled according to users’ requirements.
3. The discharge temperature is below 50 degrees, and can be directly fed into the cooling shed without cooling.
4. Low energy consumption, low investment, cost saving, energy saving and environmental protection.
Drum Dryer Working Principle:
Materials are sent from the higher section of the drum and contact with hot air. With the rotation of cylinder, the material flow down to the lower end with the effect of gravity and discharge after drying. Since the dryer is working under negative pressure conditions, feeding and discharge end use seals to prevent air leakage.
Spec./m (Dia.×vLength) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity (%) | Highest Inlet Air Temperature (°C ) | Main Motor (kw) | Weight (t) |
Φ1.2×8.0 | 9.0 | 1.9~2.4 | 3~5 | 700~800 | 7.5 | 9 |
Φ1.2×10 | 11.3 | 2.4~3.0 | 3~5 | 700~800 | 7.5 | 11 |
Φ1.5×12 | 21.2 | 4.5~5.7 | 3~5 | 700~800 | 15 | 18.5 |
Φ1.5×14 | 24.7 | 5.3~6.6 | 3~5 | 700~800 | 15 | 19.7 |
Φ1.5×15 | 26.5 | 5.7~7.1 | 3~5 | 700~800 | 15 | 20.5 |
Φ1.8×12 | 30.5 | 6.5~8.1 | 3~5 | 700~800 | 18.5 | 21.5 |
Φ1.8×14 | 35.6 | 7.6~9.5 | 3~5 | 700~800 | 18.5 | 23 |
Φ2.2×12 | 45.6 | 9.7~12.2 | 3~5 | 700~800 | 22 | 33.5 |
Φ2.2×14 | 53.2 | 11.4~14.2 | 3~5 | 700~800 | 22 | 36 |
Φ2.2×16 | 60.8 | 13.0~16.2 | 3~5 | 700~800 | 22 | 38 |
Φ2.4×14 | 63.3 | 13.5~16.9 | 3~5 | 700~800 | 37 | 45 |
Φ2.4×18 | 81.4 | 17.4~21.7 | 3~5 | 700~800 | 37 | 49 |
Φ2.4×20 | 90.4 | 19.3~24.1 | 3~5 | 700~800 | 45 | 54 |
Φ2.4×22 | 99.5 | 21.2~26.5 | 3~5 | 700~800 | 45 | 58 |
Φ2.6×24 | 127.4 | 27.2~34.0 | 3~5 | 700~800 | 55 | 73 |
Φ3.0×20 | 141.3 | 30.1~37.7 | 3~5 | 700~800 | 75 | 85 |
Φ3.0×25 | 176.6 | 37.7~47.1 | 3~5 | 700~800 | 75 | 95 |
Φ3.2×25 | 201 | 42.9~53.6 | 3~5 | 700~800 | 90 | 110 |
Φ3.6×28 | 285 | 60.8~76.0 | 3~5 | 700~800 | 160 | 135 |
