Sawdust dryer

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20 Days

Volume weight: 13.5-105(t)

Production Capacity:2.5-36(t/h)

Applied material: corn stalks, soybean straw, cotton stalks, wheat straw, sorghum stalks dry, sawdust, wood shavings, leaves, mulberry leaves.

Application area:straw briquette fuel industry, machinery industry, charcoal, wood pellet fuel industry, sawdust briquette industry, agricultural engineering industry.

Sawdust dryer Introduction:

Closely following the leading edge of science and technology in the world and introducing and absorbing foreign advanced technology, our company has successively researched and developed many kinds of energy-saving and environmentally friendly sawdust dryers, also named as wood chip dryer or wood shavings dryer, thus forming large-scale quantity production.

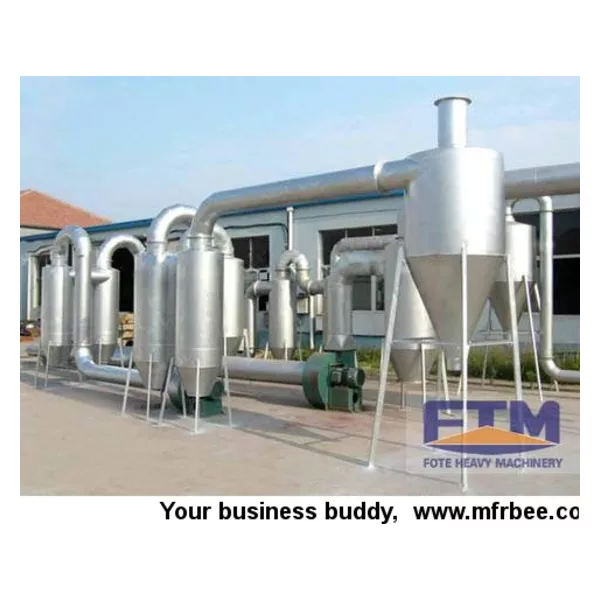

Sawdust dryer is mainly composed of air heater, feeder machine, pneumatic drying pipe, cyclone separator and draught fan. The working process of this machine is that the spiral conveyor is used to continuously send the powdery wet sawdust into the drying pipe, and in the conveyance and dispersion of high-speed hot air, the water containing in the wet materials will evaporate, thus getting powdery or granular dry products.

Due to the unique structure of the sawdust dryer machine, the sawdust can be fully dried inside the rotating cylinder, and before going into the material conveyance pipe, the sawdust will be fully dispersed again, making the water more quickly evaporated. In addition, the baffle plate can block the impurities in the sawdust to ensure the quality of the sawdust that goes into the material conveyance pipe.


Structure of Sawdust Dryer:

Sawdust drying machine is mainly composed of stove, feeding mouth, rotating tube, filter tube, material conveying tube, cooling tube and discharge mouth. Rotating tube is located above the main wheel. Driven by the motor and speed reducer, the main wheel drives the rotating tube in low speed. There is feeding mouth between the stove and rotating tube. And there are impellers in the rotating tube. There are baffles in the four connecting spot of rotating tube and filter tube. And there is a hole on the baffle. On the other side of the filter tube, it is connected with the rotating tube and for another side, it is connected with the material conveying tube. There is block in the filter tube and in the bottom of the filter tube, there are slag discharging holes. One end of the cooling tube is connected with the materials conveying tube through the air blower. And the other end of the cooling tube is connected with the discharging mouth.


Sawdust dryer Features:

1. Large drying intensity. Because the material highly dispersed in the air, the effective drying area is the whole surface of the material.

2. Short drying time

3. Simple structure, easy to build and maintain.

4. Large capacity, high thermal efficiency.

5. Use of variable-frequency adjustable-speed, changing the cylinder speed according to water production requirements to ensure that next procedure demands were met. Automatic temperature control system makes the operation more convenient.www.fut-china.com/p-18.html

Technical Datas of Sawdust dryer

Model(m) Production capacity(T/H) Main notor Main reducer Weight(T)
Power(KW) Type Type Velocity ratio
Φ1.2×10m 2.5 7.5 Y160M-R3 ZL50-16-I --- 13.5
Φ1.5×12m 3.3-4.9 10 Y160L-6-B3 JZQ500-Ⅲ-2F --- 18.9
Φ1.5×15m 4-6 18.5 Y200L1-6 JZQ500-Ⅲ-2F --- 21
Φ1.8×12m 4-6 18.5 Y160L-6 ZQ50-16Ⅱ-2 16.46 23
Φ2.2×12m 7-12 18.5 Y200L7-6 JZQ650-Ⅲ 31.5 38
Φ2.2×14m 7-12 22 Y200L7-6 JZQ650-Ⅲ 31.5 40
Φ2.2×16m 12 30 Y225M-6 JZQ750-Ⅲ 31.5 45
Φ2.4×14m 12 30 Y250M-6 JZQ750-Ⅲ 31.5 51
Φ2.4×18m 10-13 37 Y250M-6 ZL85-13-I 27.16 54
Φ2.4×20m 10-14 37 Y250N-6 ZL85-13-I 27.16 55
Φ3×20m 25 55 Y250M-4
ZL100-16-I 41.52 78
Φ3×25m 32-36 75 YR280M-4 ZL100-16-I 41.52 105
