Coal Slime Dryer

China
Henan
Packaging
standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery
20 Days

Cylinder Capacity: 9 - 285 m³

Production Capacity: 1.9 - 76.0 t/h

Application Range: Industries of mining, ore beneficiation, construction materials and chemical engineering.

Processible Materials: Slime, raw coal, flotation clean coal, mixing clean coal, slag, clay, bentonite, limestone, sand, quartz stone, metal concentrate, waste residue and tailings.

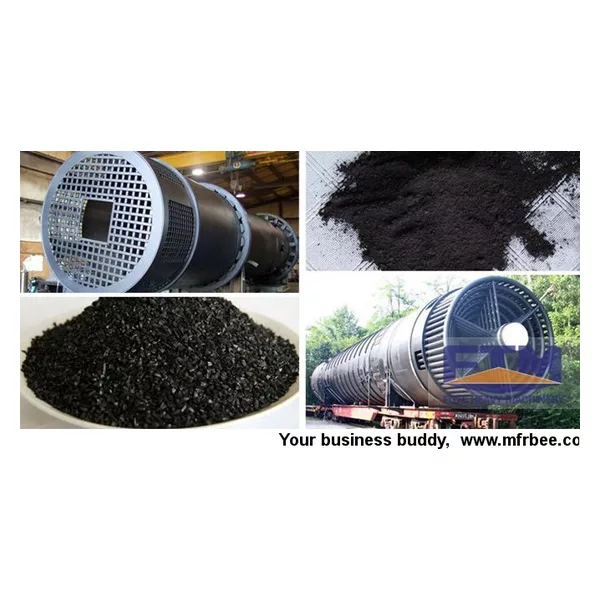

Coal Slime Dryer Introduction:

According to the working principle, slime dryer belongs to rotary drying equipment and it is a mature drying machine produced by our company. This machine is suitable for drying slime, sludge, metal and non-metallic ore in coal mines and clay in cement industry. It has the features of high productivity and convenient operation.

The slime dryer system is mainly composed of heat source system, feeding system, conveyance system, drying system, dust collection system, air introduction equipment and electric control system.


The heat source of the dryer machine comes from the combustion device and this dryer uses co-current heating method, so that when the materials to be dried go into the cylinder from the feeding box or feeding chute, they are pushed back by the spiral lifting board. Since the dryer machine is obliquely installed, the materials flow to the lower end of the machine under the gravity and the rotation of the machine, and on the other hand, the materials are repeatedly lifted by the lifting board to the higher end and then spread down constantly, so that the materials will form a even curtain inside the cylinder and conduct heat exchange with the hot air inside the cylinder. Since the materials constantly spread and the water contained in them will be dried, thus achieving the aim of drying.

Coal Slime Dryer Features:

Coal slime dryer or sludge dryer has strong anti-overload capability, large quantity management, low fuel consumption and low drying costs. Discharging devices can prevent phenomenon of clogging of the feed drum dryer, to reduce the load of the exhaust system.

Coal Slime Dryer Working Principle:


wet slime are sent into scattered equipment via ribbon conveyor, the massive coal slime after scattering are sent into drying chamber dryer of negative pressure, through feeding, cleaning, low temperature drying and discharging. The exhaust gas is drained after removing the dust, and the finished products are transported into warehouse.www.china-ftm.com/pros/coal_slime_dryer.html

Technical Datas of Coal Slime Dryer

Model(m)
(Diameter×Length)
Cylinder volume
(m³)
Production capacity
(t/h)
Installation inclination
(%)
Highest intake air temperature
(℃)
Main motor
(kw)
Total weight
(t)
Φ1.2×8.0 9.0 1.9~2.4 3~5 700~800 7.5 9
Φ1.2×10 11.3 2.4~3.0 3~5 700~800 7.5 11
Φ1.5×12 21.2 4.5~5.7 3~5 700~800 15 18.5
Φ1.5×14 24.7 5.3~6.6 3~5 700~800 15 19.7
Φ1.5×15 26.5 5.7~7.1 3~5 700~800 15 20.5
Φ1.8×12 30.5 6.5~8.1 3~5 700~800 18.5 21.5
Φ1.8×14 35.6 7.6~9.5 3~5 700~800 18.5 23
Φ2.2×12 45.6 9.7~12.2 3~5 700~800 22 33.5
Φ2.2×14 53.2 11.4~14.2 3~5 700~800 22 36
Φ2.2×16 60.8 13.0~16.2 3~5 700~800 22 38
Φ2.4×14 63.3 13.5~16.9 3~5 700~800 37 45
Φ2.4×18 81.4 17.4~21.7 3~5 700~800 37 49
Φ2.4×20 90.4 19.3~24.1 3~5 700~800 45 54
Φ2.4×22 99.5 21.2~26.5 3~5 700~800 45 58
Φ2.6×24 127.4 27.4~34.0 3~5 700~800 55 73
Φ3.0×20 141.3 30.1~37.7 3~5 700~800 75 85
Φ3.0×25 176.6 37.7~47.1 3~5 700~800 75 95
Φ3.2×25 201 42.9~53.6 3~5 700~800 90 110
Φ3.6×28 285 60.8~76.0 3~5 700~800 160 135
