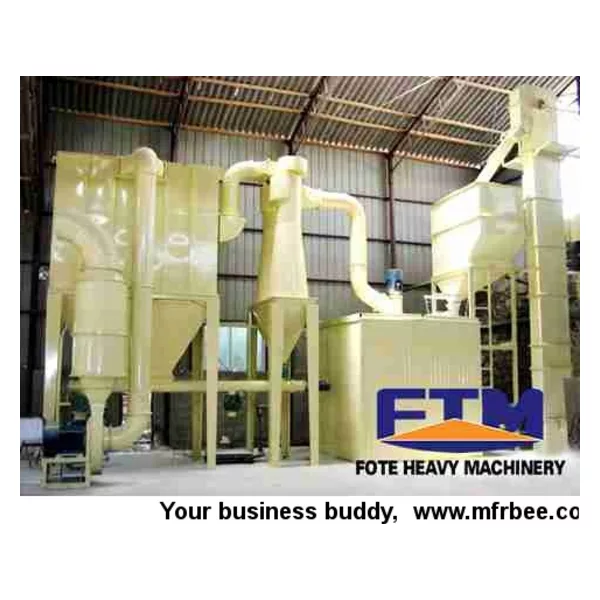

Powder Grinding Mill

Output: 500 - 7000 kg/h

Power: 22 - 200 c°/t

Powder Grinding Mill Introduction：

Ring medium speed micro powder mill (also known as micro powder grinding, micro powder mill or powder machine) is named for its three ring, it is a fine and superfine powder processing equipment, mainly suitable for the super fine powder processing of non-explosive brittle materials with medium and low hardness, and Mohs hardness below 6 degree, such as calcite, chalk and other 100 kinds of materials, finished product granularity of fine powder can be adjusted between 325-2500 mesh (47-5 microns), the yield is up to 325 -2500 kg per hour.

Powder Grinding Mill Features：

High efficiency and energy saving

Under the condition of same finish fineness and motor power, its output is above one time higher than the airflow grinding, mixing mill and ball mill.

Long working life of quick-wear parts

Grinding roller and grinding ring are made of special material, which greatly improve the usage degree. Under the circumstance of same material fineness and finished product fineness, its working life is 2~5 times longer than that of impact crusher and turbine crusher.

High security and reliability

The bearing and sealing element are not easy to be worn, the screws are not easy to lose and the machine is not easy to be broken.

High product fineness

Product fineness can reach D97 ≤ 5μm.

Environmental protection

It uses pulse dust collector to captures dust, uses silencer to reduce noise, so it is environmental protected and clean.

Powder Grinding Mill Working Principle：

Powder material are scattered around the circle periphery under centrifugal force and falls into the grinding ring raceway and shocked, rolled, grinded by the ring roller. It turns into powder through three processes. The high pressure draught fan sucks the outer air into the engine, and bring the crushed materials into powder concentrator. The rotating impeller makes the rough material re grinded, the standard fine powder come into whirlwind set powder and discharged by the lower discharge valve to become the finished products, while the air flow with small amount of fine dust are discharged through the fan and muffler after cleaning by pulse dust collector.www.china-ftm.com/pros/powder_grinding_mill.html
