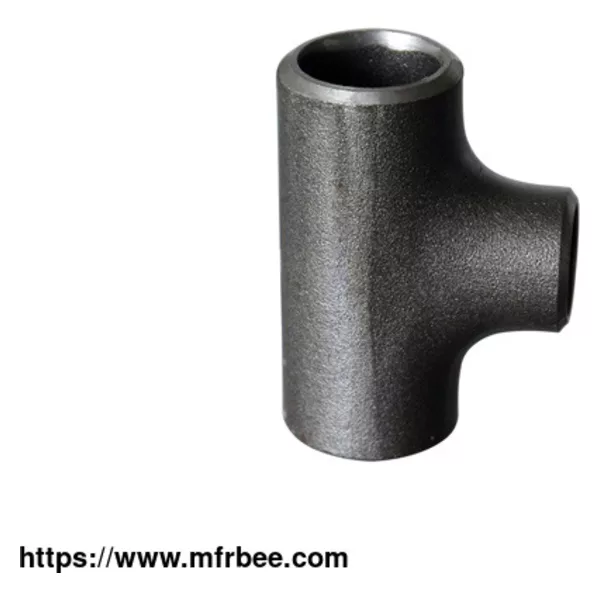

Reducing Tee Varnish Paint Seamless Buttweld

The butt weld reducing tee is also a kind of Tee, but the branch pipe and the main trunk line have an unequal pipe diameter. Reducing Tee is widely used in the construction and maintenance of projects in the petrochemical, petroleum and natural gas, liquefied petroleum gas, fertilizer, power plants, nuclear power, shipbuilding, papermaking, pharmaceuticals, food hygiene, urban construction, and other industries.

Reducing Tee Vanish Paint Seamless Buttweld Dimensions

Size O.D at Bevel C M Size O.D at Bevel C M

Run Outlet Run Outlet

1/2x3/8" 21.3 17.3 25 25 5x3 1/2" 141.3 101.6 124 114

1/2x1/4" 21.3 13.7 25 25 5x3" 141.3 88.9 124 111

3/4"x1/2" 26.7 21.3 29 29 5x2 1/2" 141.3 73 124 108

3/4"x3/8" 26.7 17.3 29 29 5x2" 141.3 60.3 124 105

1x3/4" 33.4 16.7 38 38 6x5" 168.3 141.3 143 137

1x1/2" 33.4 21.3 38 38 6x4" 168.3 114.3 143 130

1 1/4x1" 42.2 33.4 48 48 6x3 1/2" 168.3 101.6 143 127

1 1/4x3/4" 42.2 26.7 48 48 6x3" 168.3 88.9 143 124

1 1/4x1/2" 42.2 21.3 48 48 6x2 1/2" 168.3 73 143 121

1 1/2x1 1/4" 48.3 42.2 57 57 8x6" 219.1 168.3 178 168

1 1/2x1" 48.3 33.4 57 57 8x5" 219.1 141.3 178 162

1 1/2x3/4" 48.3 26.7 57 57 8x4" 219.1 114 178 156

1 1/2x1/2" 48.3 21.3 57 57 8x3 1/2" 219.1 101.6 178 152

2x1 1/2" 60.3 48.3 64 60 10x8" 273 219.1 216 203

2x1 1/4" 60.3 42.2 64 57 10x6" 273 168.3 216 194

2x1" 60.3 33.4 64 51 10x5" 273 141.3 216 191

2x3/4" 60.3 26.7 64 44 10x4" 273 114.3 216 184

2 1/2x2" 73 60.3 76 70 12x10" 323.8 273 254 241

2 1/2x1 1/2" 73 48.3 76 67 12x8" 323.8 219.1 254 229

2 1/2x1 1/4" 73 42.2 76 64 12x6" 323.8 168.3 254 219

2 1/2x1" 73 33.4 76 57 12x5" 323.8 141.3 254 216

3x2 1/2" 88.9 73 86 83 14x12" 355.6 323.8 279 270

3x2" 88.9 60.3 86 76 14x10" 355.6 273 279 257

3x1 1/2" 88.9 48.3 86 73 14x8" 355.6 219.1 279 248

3x1 1/4" 88.9 42.2 86 70 14x6" 355.6 168.3 279 238

3 1/2x3" 101.6 88.9 95 92 16x14" 406.4 355.6 305 305

3 1/2x2 1/2" 101.6 73 95 89 16x12" 406.4 323.8 305 295

3 1/2x2" 101.6 60.3 95 83 16x10" 406.4 273 305 283

3 1/2x1 1/2" 101.6 48.3 95 79 16x8" 406.4 219.1 305 273

4x3 1/2" 114.3 101.6 105 102 16x6" 406.4 168.3 305 264

4x3" 114.3 88.9 105 98 18x16" 457 406.4 343 330

4x2 1/2" 114.3 73 105 95 18x14" 457 355.6 343 330

4x2" 114.3 60.3 105 89 18x12" 457 323.8 343 321

4x1 1/2" 114.3 48.3 105 86 18x10" 457 273 343 308

5x4" 141.3 114.3 124 117 18x8" 457 219.1 343 298

Reducing Tee Vanish Paint Seamless/Welded VS Stainless Steel Reducing Tee

1. Standard (Similarity):

Both reducing tee vanish paint and stainless steel reducing tee manufacture standard can be ASME B16.9,ASME B16.28,MSS SP-43,MSS SP-75 JIS B2311,DIN2605/2615/2616/2617,GOST 17375/17376/17378/17379,ISO

2 Wall Thickness (Similarity):

Both reducing tees varnish paint and stainless steel reducing tee wall thickness can be SCH10/10S, SCH20/the 20S, STD, SCH40/40S, XS, SCH80, XXS, ETC.(for ANSI), SGP(for JIS)

3. Range of Applications (Similarity):

Size: 1/2"-48"(DN15-DN1200), or even bigger

Finishing: Black, Vanish, Oiled, Galvanized.

Connection type: Butt Welding.

4. Installation (Similarity):

The connection way of stainless steel reducting tee and black reducting tee is the same, which is directly welded with the pipe end.

Reducing Tee Vanish Paint Seamless Buttweld FAQ

1. Which Type of Tee Has a Branch at an Angle Other Than 90o?

The wye tee has the branch at a 45° angle or an angle other than 90°.

2.What is a Seamless Butt Weld Fitting?
