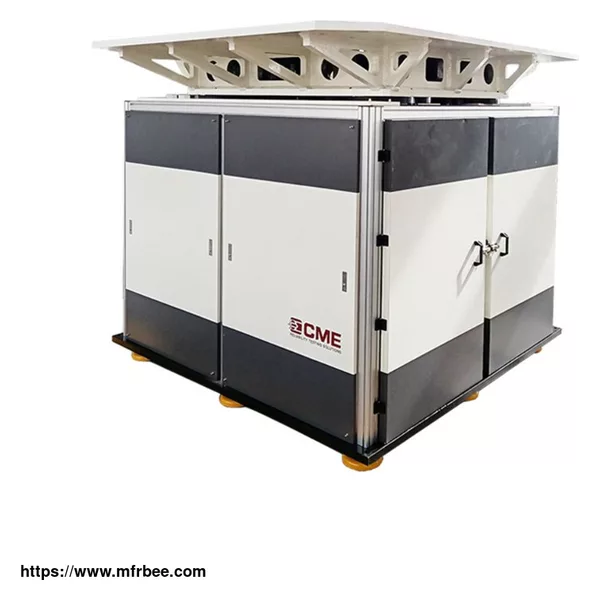

KRD17 Bidirectional Vertical Shock Test System

KRD17 series is a new designed fully automatic pneumatic lifting bidirectional shock test system with high degree of automation, simple operation and convenient maintenance. It is a bidirectional vertical shock test system developed for measuring and determining the impact resistance of large specimens without turning over them, and assesses the functional reliability and structural integrity of the specimens. It is especially used in the field of battery testing, can perform various conventional classic vertical upward and downward shock tests in one test table to realize the shock wave and impact energy suffered by the product in the actual environment. This equipment meets standards of IEC68-2-27, MIL-STD-202, MIL-STD-750, MIL-STD-810, MIL-STD-883, UN38.3 and other battery testing standards.

FEATURES OF KRD17 BIDIRECTIONAL VERTICAL SHOCK TEST SYSTEM

Circulating storage cylinder:strong impact, fast speed, and low air consumption

Adopt full pneumatic drive: simple structure, high reliability, no pollution

Bidirectional shock test:effectively complete the upward and downward shock tests without turning over UUT

Multiple functions:to complete the bidirectional shock and bump tests by one clamping, with high efficiency

High degree of automation:After the height setting is completed, the software automatically lifts the working table to the set height, with high accuracy and good repeatability

Multi-track guide pillar:combined with pneumatic balance lifting system, no noise, fully automatic positioning table

Built-in pneumatic brake mechanism,safe and reliable

High-performance buffer and vibration isolation device,no special foundation is needed, and it is easy to install

TABLE OF KRD17 BIDIRECTIONAL VERTICAL SHOCK TEST SYSTEM

This bidirectional shock test table is composed of a circulating air storage cylinder, a pneumatic self-locking control mechanism up and down each, a forward impact plate, a reverse impact plate, a locking mechanism, a base, and other parts.

The circulating accumulator is used as the shock power cylinder. The pneumatic brake device locks the table at the set position. The circulating accumulator is inflated. After the air pressure reaches the set value, the locking device is controlled to release, and the circulating storage cylinder drives the table to accelerate upward and downward movement, and impacts the waveform generator on the impact plate to produce the required shock waveform.

DUAL MASS SHOCK AMPLIFIER OF KRD17 BIDIRECTIONAL VERTICAL SHOCK TEST SYSTEM

The shock amplifier is a device that uses the rebound energy of the ordinary impact shock table to realize the opposite impact between the servo table and the seat on the amplifier so that the impact acceleration is multiplied.

WAVE GENERATORS OF KRD17 BIDIRECTIONAL VERTICAL SHOCK TEST SYSTEM

KRD17 series bidirectional mechanical shock machine, mechanical shock test is equipped with a half-sine wave generator. The half-sine wave generator is mainly made of engineering rubber (considering the stiffness and cohesive force of rubber) and felt pads of various thicknesses. Different thicknesses are connected in series to form multiple stiffnesses to achieve different shock pulse widths. Optional for post-peak sawtooth wave generator which is lead cone; trapezoidal wave generator air source is high-pressure nitrogen, the pressure range is 1-10MPa, and the overload value can be adjusted between 10-100g, as shown in the following figure:

CME mechanical environment equipment covers wide range of testing, including shock test, vibration test, constant acceleration test, drop test machine, incline impact test, compression test, whatever type of international standards you need to test for your products, we have the corresponding mechanical reliability test equipment to carry out the testing.
