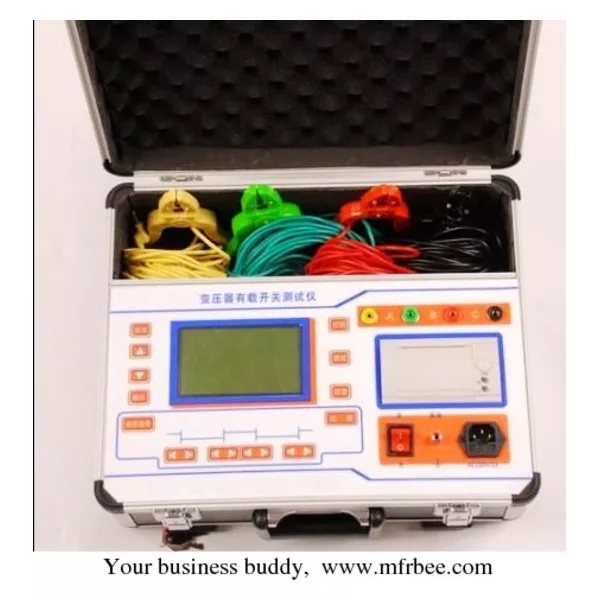

GDKC-2000 Power Transformer Tap Switch Tester

Product Quick Detail

GDKC-2000 Transformer Load Voltage Adjustment Switch Tester

General introduction:

The tester can record switch operation waveform in overall process.
The longest time is 6.4s.
It can test various parameters such as transition waveform, transition time, transition resistance and three phase synchronization one time and analyze results automatically.
It has power-off protection, over-voltage protection, perpetual clock and high-speed printing.

Technique index:

1. Three way independent test power, the maximum output current is 0.5A.

2. Processing part: 80C320 high speed 8 digit microprocessor High speed A/D converter, the 3.Maximum sampling rate can reach 400KHz

4. Tester set sampling rate:10~20KHz

5. Maximum save time of single waveform:6.4s

6.Transition resistance measuring scope:0~40Ω

7.Measuring precision:<10%

8.Power supply: 220V±10% power:200W

9. Size: 410mm´320mm´260mm

10. Weight: 20kg

What Else we have:

Electric Testing Equipment
Item:	CT/PT Analyzer	Full-auto Transformer Ratio Tester
	High Voltage Circuit Breaker Tester	Transformer DC Resistance Tester
	Portable Wave recorder	Voltage Divider
	Volt-ampere Ratio Tester	Dry/Wet/Oil-type Transformer
	Insulating Oil Tester	High-current Generator
	Oil Dielectric Loss Tester	Lighting Rod Tester/Earth-Resistance Tester

Why Choose Us:

Always Customer First.
Professional Testing Equipment Supplier,with 5 years experience in this field.
Exllent after-sale service and Always Competitive Price.
English operating interface.
Wtih In-house quality control.All the Equipments will be tested before leaving factory.
All the Equipment has one year warranty.
