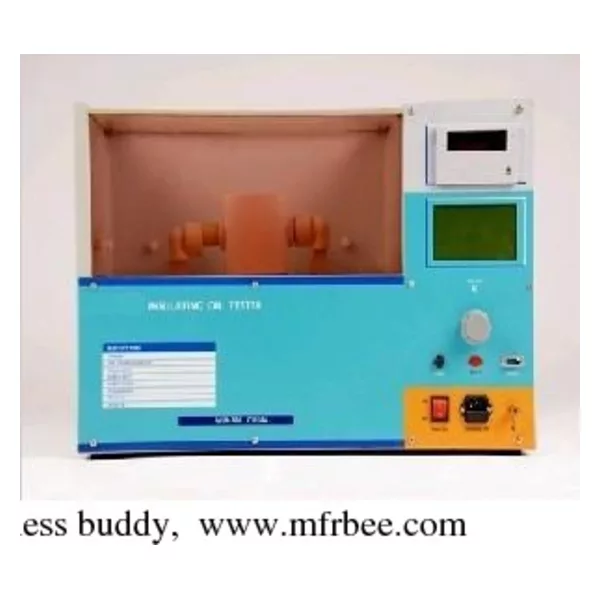

GDYJ-502 ASTM Standard Transformer Oil Testing Kit

Place Of Origin
ChongQing,CHINA
Packaging
1 full set in one plastic or wooden box
Delivery
15 Days

Functions:


1. Breakdown test of user-defined
2. Proof test
3. IEC60156/IS6792/BS5874 test
4. ASTM D1816 standard test
5. ASTM D877 standard test
6. 5 minutes standard test
7. Manual test
8. Calibration interface for customers
9. Uploading data to PC and making word report automatically.
10. Result print

Technique index:

1. Output voltage:AC 0V~100KV
2. Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3. Max test times setting for user-defined mode: 9
4. Stir time setting for user-defined mode: 0~999s
5. Waiting time setting for user-defined mode: 0~999s
6. Test error: 3%RDG+0.3%FS
7. Display: 256´128 LCD
8. Maximum storage capacity: 100 groups of test data
9. Power supply : AC220V±10%, 50Hz/60Hz
10. Environment temperature: 0-50°C
11. Relative humidity ≤80%RH
12. Weight:41kg
13. Size: 620 mm*430mm*330mm
