wirelessDMX transceiver

Overview

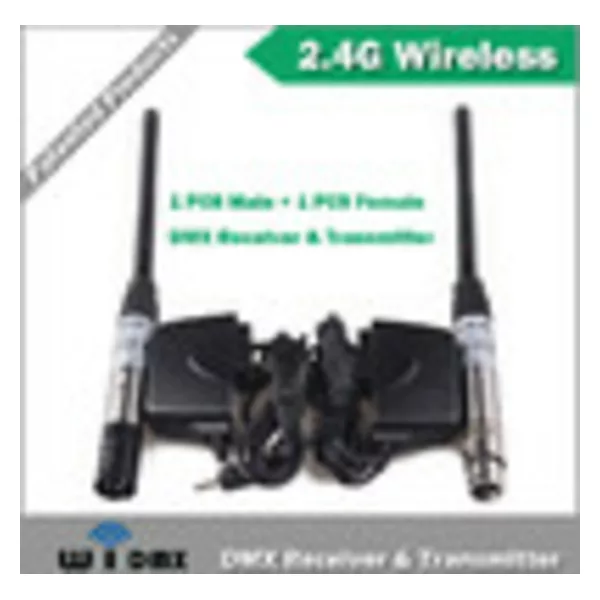

Wireless DMX512 Transceiver LC-512X DMX512 console data to the wireless transmission of standard lamps and lighting can also be transmitted on-line data, the product is completely solved the wireless transmission of data between the console lights and lamps, lamp and lampcompletely remove the long dependent on twisted pair. Data transmission process to be done without delay, real-time data and reliable! The product uses 2.4G global open ISM band, license-exempt use. Efficient GFSK modulation, 126 channel automatic frequency hopping communication design, strong anti-interference ability.

Application

• Stage lighting, theatrical performances, the stadium lights, temporary staging, the city lights, television, conference centers, professional theaters, theme parks, dance halls, bars and small theatrical performances, etc.

Features and Benefits

- Completely independent R&D, Design Patent and Utility Model Patent certificated
- 2.4G global open ISM band with license-exempt use

- Efficient GFSK modulation and 126 channels frequency hopping, avoid interference channels automatically
- Fully duplicate DMX512 console signals, including the Break time, MAB time, number of channels, and refresh rate.
- Auto-switching transceiver
- 32-bit ARM Core CPU
- Standard DMX512 three core XRL male & female connector
- Tri-color LED displays working status and parameters with one-touch operation that can set 6 groups ID codes
