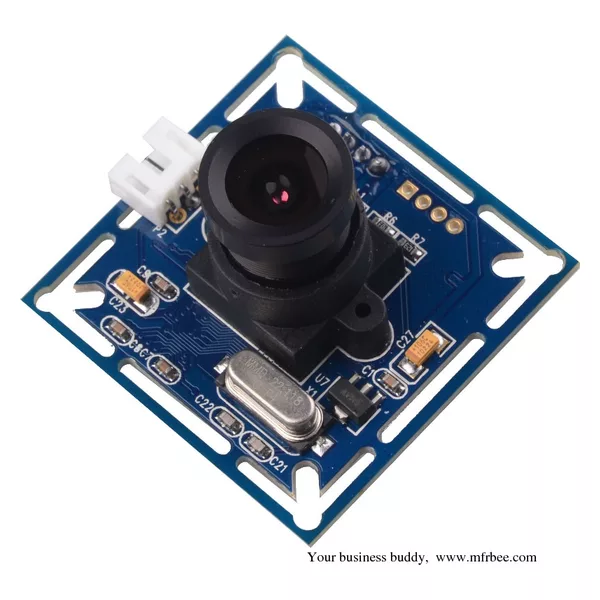

JPEG Camera Module

Product Description

Overview

The Serial Camera, built in snapshot, JPEG compression and serial interface communication module, can be attached to computer and any other embedded devices performing as a video camera or a JPEG compressed still camera for imaging applications. It uses an Omni Vision CMOS OV7725 sensor(OV7725 is also used in the camera of iPhone, it is much better than others) along with a JPEG compression chip that provides a low cost and low powered camera system. Its on-board Serial interface is suitable for a direct connection to any host micro-controller UART. The JPEG picture can be captured via serial commands, which leads to monitoring so easy.

Lens Description

2.5mm, 2.8mm, 3.6mm, 6mm, 12mm IR lens or color lens are selectable for customers

Features and Benefits

- Work by day and night
- Low cost and low powered camera for embedded imaging applications
- On board EEPROM provides a command-based interface to external host via TTL or RS232 or RS485 serial link
- UART: 2400-115200bps transferring JPEG still pictures
- Built-in down sampling, clamping and windowing circuits for 640*480, 320*240, 160*120 image resolutions
- Compression ratio can be changed flexibly by user
- No external DRAM required
- Auto-Infrared, Auto-White Balance, Auto-Gain Control

- A comprehensive design for the automotive environment
- Operating voltage of a wide range of optional DC 5V, 12V,9-36V
- Support for RS232, RS485, TTL level three kinds of way communication

- UART: 1,200-115,200bps transferring JPEG still pictures
- Built-in down sampling, clamping and windowing circuits for 640*480, 320*240, 160*120 image resolutions
- Compression ratio can be changed flexibly by user
- Can be customized protocols and functions according to the specific requirements of the user
- Auto-Infrared, Auto-White Balance, Auto-Gain Control
