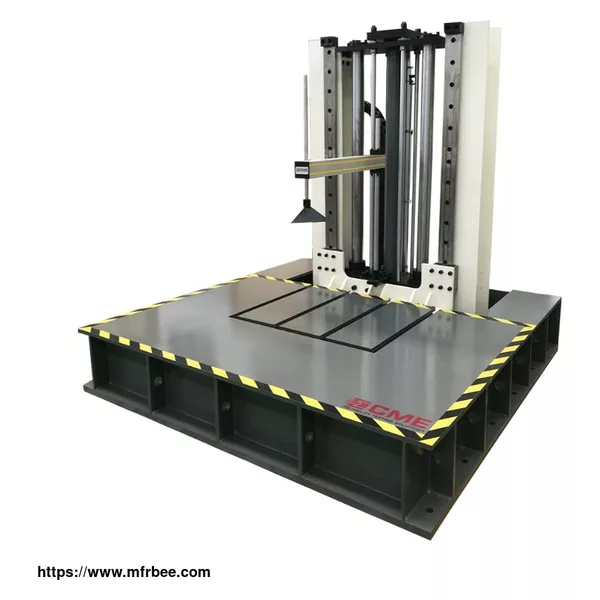

KRD40 ZERO DISTANCE DROP TEST MACHINE

Minimum Order
1
Packaging
N/A
Delivery
15 Days

KRD40 series zero-distancedrop shock test machine is a single lifting servo motor drivingdrop shock machine, which is mainly used for packaging goods that will be impacted by a vertical drop during transportation and handling operations at a good drop test machine price . The packaged goods are subjected to standardized tests (face drop, angle drop, edge drop, etc.) to collect data, for the design of cushioning and vibration reduction, and the selection of packaging materials provide a design basis. It is applicable for electronic products, plastic products, toy products, packaged products, and unpacked products, to evaluate the impact strength of the product during handling or the damage caused by the drop, and to evaluate the impact resistance during transportation and handling procedure.

FEATURES OF KRD40 ZERO DISTANCE DROP TEST MACHINE

l Servo closed-loop motor drive, simple structure, high reliability, smooth lifting

l Adopt a single fully automatic lifting method, and the drop height is adjustable

l PLC control is stable and reliable, the drop height can be accurately tracked and displayed in real-time

l Handheld pad + human-computer interaction software, easy to operate

l It can realize the drop test of the edge, surface, and angle of the sample

l True color full touch screen operation, convenient and quick

l Adopt the E-fork structure to rise and fall, and the E-fork tray moves up and down under the control of a servo motor and a screw roller

TECHNICAL SPECIFICATIONS OF KRD40 ZERO DISTANCE DROP TEST MACHINE

Model KRD KRD KRD
Parameters 40 -100 40 -200 40 - 300
Max.Load (kg) 100 200 300
Drop Height (mm) 0~1500
Max.Specimen Size (mm) 1000×1000×1000 1200×1200×1200 1300×130O×1300
Position Accuracy ±2
Drop Zone Size (w"D/mm) 1200x1200 140O×1400 1500x1500
Test Mode Face,Edge and Angle
Power AC380V±10% 5OHz
Working Environment Temperature range O~40°C, humidity<80% (no condense)
Standards ISO2248-1985(E)IEC68-2-27 ISTA

TABLE OF KRD40 ZERO DISTANCE DROP TEST MACHINE

KRD40 zero-distance drop test table is mainly composed of an impact plate, lifting system, a working table, guide column, fixtures, displacement sensor, release mechanism, etc.

The working principle of the vertical drop test system can be briefly described as the lifting cylinder lifts the working table and the test piece to a certain height, and is released by the electromagnetic release mechanism. Since the work surface adopts a compressed energy storage spring during the lifting process, the work surface falls at a speed greater than the falling speed of the test piece. The test piece keeps its original state (face, edge, and corner) and falls freely, collides with the bottom plate, and completes the test requirements.
