0.96 Inch 80x160 SPI Interface Small LCD Display

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

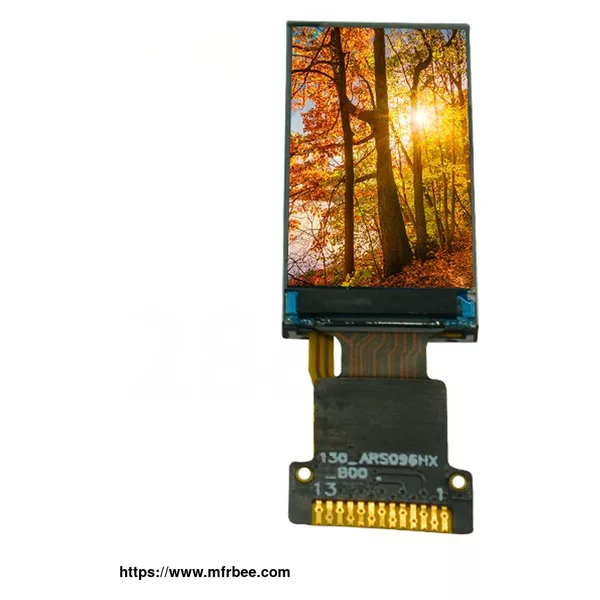

Kingtech 0.96inch 80x160 TFT LCD module is a small tft lcd display . The resolution is very special and this display supports SPI interface.

The TFT display does not have existing resistive touch and capacitive touch, but we can custom LCD screens according to customer requirements. This 0.96 inch lcd can be used for supermarket labels and bracelet.

Features of 0.96 Inch 80x160 SPI Interface small tft screen

80x160 resolution

Vertical / Portrait

Can custom resistive and capacitive touch screen

4 Line SPI interface

Super thinner

Free/full/wide viewing angle

LCD IPS screen

Specification of 0.96 Inch 80x160 SPI Interface Small LCD Display

Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests for specifications will be welcomed.

Item 0.96inch TFT module display

Model No PV096000AR13A

Resolution 80x160

Outline Dimension 13.5(H)x27.95(V)x1.5(D)

Active Area(mm) 10.8(H)x21.7(V)

Brightness 300nits

Viewing Angle All

Interface 4 Line SPI

Driving IC ST7735S

Display Mode Transmission / Normally Black

Operating Temperature -20℃~70℃

Storage Temperature -30℃~80℃

Touch screen Can custom resistive and capacitive touch screen

Application of 0.96 Inch 80x160 SPI Interface Small LCD Display

The 0.96inch 80x160 TFT LCD display can be used for medical device, handheld equipment, industrial control, smart home and supermarket labels and bracelet.

As one of the most professional lcd factories, we provide spi lcd display module, spi lcd screen, custom lcd display and etc. Want to buy lcd module or know more? Please contact us.
