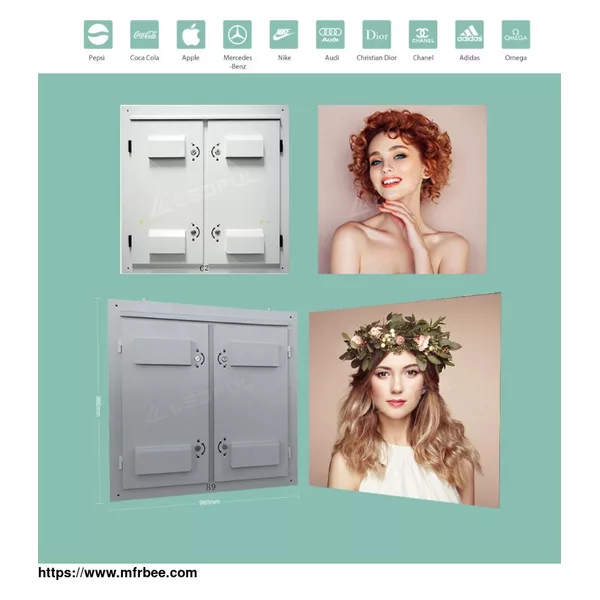

OF Series Outdoor Commercial Advertising LED Display
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
OF Series led commercial advertising display screen is a traditional outdoor LED digital billboard product, including large commercial advertising led display, mainly used for commercial
advertising. It is a great way to promote business, meantime the concept of Smart City becomes more and more popular, large advertising screens can also be used as traffic instruction and
information announcement board.
Product Features:
Weatherproof Design
Working temperature from -20℃ to +65℃. IP65 ensures water and dust proof.
Energy Saving Solution
Special PCB design and power supply option can save about 20% energy.
CLOUD Control
Suitable for over 90% of screen management scenarios, complete functions, and easy to use.
High Brightness
From 5,000nits to 12,000nits, face to sunshine directly without compromising performance.
Wide Viewing Angle
Vertical and horizontal 160 degrees promise perfect viewing effect.
Specification
OF/OFR OF2.5 OF3 OF3.076 OF3.91 OF4 OF4.81 OF5
Pixel Pitch(mm) 2.5 3 3.08 3.91 4.00 4.81 5.00
Pixel Matrix Per Sq.m 160000 111111 105680 65436 62500 62500 40000
Pixel Configuration SMD1415 SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 5000 1800 5000 4000 5000 5500 4000 5500
Scan 1/16 1/16 1/13 1/16 1/10 / 1/8 1/13 1/8
Module Dimension 160x160mm 192x192mm 320x160mm 250x250mm 320x160mm
/256x128mm 250x250mm 320x160mm
Cabinet Dimension 960x960mm （Cabinet size can be changed according to module size）
Cabinet Weight 46kg / 101lb (Iron) 46kg / 101lb (Iron) 45kg / 99lb (Iron) 44kg / 97lb (Iron) 44kg / 97lb (Iron) 43kg / 95lb (Iron) 43kg / 95lb (Iron)
Power Con. (Max / Avg) 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m
IP Rate IP65
Service Access Rear
Refresh Rate (HZ) >1920
Grey Scale (bit) 16bit
Viewing Angle (H/V) 140/140
Input Voltage (AC) 110V/240V
OF/OFR OF6 OF6.6 OF8 OF10S O10D OF16S OF16D
Pixel Pitch(mm) 6 6.67 8 10 10.00 16 16.00
Pixel Matrix Per Sq.m 27777 22500 15625 10000 10000 8000 10000
Pixel Configuration SMD3535 SMD2727 SMD3535 SMD3535 DIP346 SMD3535 DIP346
Brightness (nits) 5500 5500 6500 6500 10000 8000 10000
Scan 1/8 1/6 1/3 1/2 1/2 1/1 1/1
Module Dimension 192x192mm 320x160mm 320x160mm 320x160mm 320x160mm 256x256mm 256x256mm
Cabinet Dimension 960x960mm （Cabinet size can be changed according to module size）
Cabinet Weight 42kg / 93lb (Iron) 42kg / 93lb (Iron) 41kg / 90lb (Iron) 40kg / 88lb (Iron) 40kg / 88lb (Iron) 46kg / 101lb (Iron) 46kg / 101lb (Iron)
Power Con. (Max / Avg) 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m
IP Rate IP65
Service Access Rear
Refresh Rate (HZ) >1920
Grey Scale (bit) 16bit
Viewing Angle (H/V) 140/140
Input Voltage (AC) 110V/240V
* Specifications and photos are subject to change without prior notice.
As one of the most professional outdoor led screen manufacturers, we provide HD LED panel, pole LED display, outdoor LED advertising, outdoor led advertising display, large led advertising screens,
large outdoor advertising screen, led display screen for advertising outdoor and etc. Contact us to know more.
