Specification
Model IPM5R IPM10R OPM6.6R OPM8R OPM10R
Pixel Pitch(mm) 5 10 6.67 8 10
Pixel Matrix Per Sq.m 40000 10000 22500 15625 10000
Pixel Configuration SMD2121 SMD3528 SMD3535 SMD3535 SMD3535
Brightness (nits) 1200 1500 6000 6000 6000
Scan 1/8 1/8 1/2 1/2 1/2
Module Dimension 320x160mm / 1.05x0.52ft 320x160mm / 1.05x0.52ft 320x160mm / 1.05x0.52ft 320x160mm / 1.05x0.52ft 320x160mm / 1.05x0.52ft
Cabinet Dimension 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft 960x960m m / 3.15x3.15ft 960x960mm / 3.15x3.15ft
Cabinet Resolution 192x192 96x96 144x144 120x120 96x96
Cabinet Weight 28kg Die casting aluminum 28kg Die casting aluminum 28kg Die casting aluminum 28kg Die casting aluminum 28kg Die casting aluminum
Power Con. (Max / Avg) 900 / 180 w/sqm 900 / 180 w/sq.m 900 / 180 w/sq.m 900 / 180 w/sq.m 900 / 180w/sq.m
IP Rate IP43 IP65
Service Access Front / Rear Rear
Refresh Rate (HZ) >1920 >1920
Grey Scale (bit) 14bit 16bit
Viewing Angle (H/V) 140/140 140/140
Input Voltage (AC) 110V/220V 110V/240V
* Specifications and photos are subject to change without prior notice.

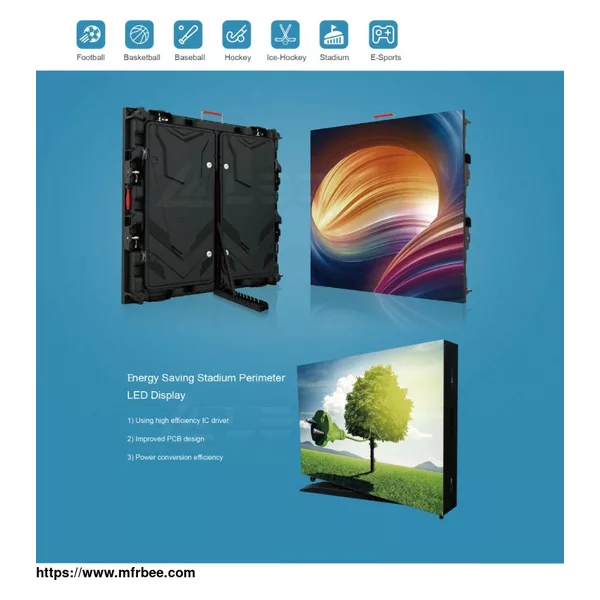

Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.
As one of the most professional outdoor led screen manufacturers, we provide HD LED panel, perimeter display, stadium perimeter led display, perimeter led display, perimeter led screen, perimeter
LED display, perimeter LED screen, led perimeter screen, led perimeter display, advertising display screen led and etc. Contact us to know more.
