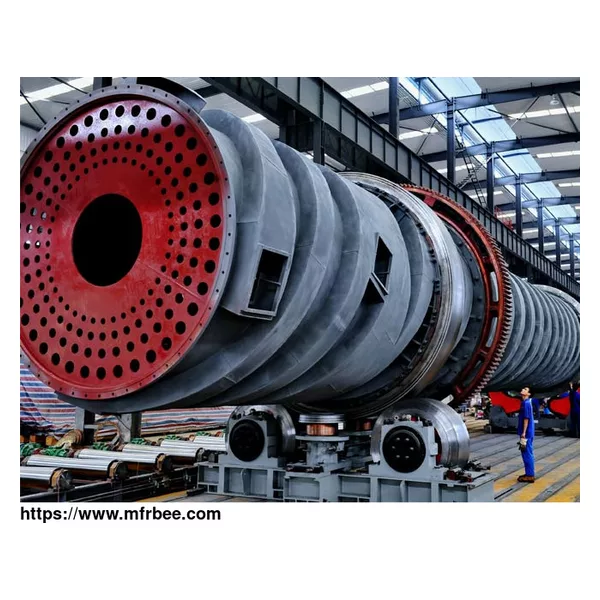

Cement Rotary Kiln

Since 1950s, CIC rotary kiln manufacturer had started manufacturing of pyro processing equipment. These series of pyro processing rotating kiln equipment were used in various fields, that enforce us to overcome many difficulties. Nowadays, our rotary kiln in cement industry meets the incineration requirements of this equipment for various materials. The complete sets of the pyro processing heavy equipment and machinery CIC rotary kiln manufacturer can provide includes the dry, semi-dry and wet-processed cement rotary lime kiln, self-return soda steam calciner, metallurgy rotary kiln, environmental dryer and cooler, etc which are widely used in the industries of cement producing, metallurgy, chemical, environment protecting and ,etc.

Design of rotary kiln for cement manufacture

Shell: Kilned carbon steel and alloy steel shell by automatic welding.

Supporting Device: Advanced spindle with automatic temperature measuring device and electronic heater unit.

Tyre and Roller: Made of ZG35CrMo steel and 42CrMo steel.

Driving Device: Rotary lime kiln is equipped with the reducer with the hard tooth surface and flexible diaphragm coupling, by continuous current dynamo or variable-frequency and variable-speed motor.

Kiln Seal Device: Different types of the seal are designed to match the needs.

Low-speed driving device is equipped.

Available for hazardous waste incineration such as chemical waste incinerator and industrial waste incinerator. In addition, fertilizer coolerand fertilizer granulator are also in the custom options.

What are the Design Parameters of activated carbon rotary kiln?

Raw material

Inlet and outlet temperature

Size of rotary kiln

Processing capacity

Scope of supply

How to Stabilize Kiln Temperature in Summer and Keep the Production?

The heat transfer modes of high-temperature gas in a kiln to kiln skin are radiation heat transfer and convection heat transfer;

There is only conduction heat transfer among kiln skin, kiln brick and kiln shell;

There is only convective heat transfer between the outer wall of the kiln and the surrounding environment;

The kiln skin is in close contact with the refractory brick, that is, the temperature of the kiln skin at the contact position is the same as that of the brick;

The firebrick is in close contact with the rotating kiln body, that is, the temperature of the firebrick at the contact part is the same as that of the kiln body;

The inner surface temperature of the cement rotary kiln is the same as the outer surface temperature (the thickness of the kiln is ignored).

Technical Parameters of Rotating Kiln

Technical Parameters of Steam Calcination Kiln for Sodium Bicarbonate with Inner Recycling Of Soda

Specification Capacity Design Pressure（Mpa） Design Temperature（℃） Work Pressure（Mpa） Work Temperature（℃）

m t/d Tube Shell Tube Shell Tube Shell Tube Shell

φ2.5×27 400 3.53 Normal Pressure 270 200 3.2 Normal Pressure 238 200

φ2.8×27 520 3.53 Normal Pressure 270 200 3.2 Normal Pressure 238 200

φ3×30 660 3.53 Normal Pressure 270 200 3.2 Normal Pressure 238 200

φ3.2×32 800 3.53 Normal Pressure 270 200 3.2 Normal Pressure 238 200

Technical Parameters of Steam Calcination Kiln for Sodium Bicarbonate with Inner Recycling Of Soda

Specification Heat Exchange Area Installation Inclination Main Motor Power Speed Rate Main Drive Slow Speed Drive Net Wt. Max Wt。 With Filler Product Features

m M2 % kw r/min r/min r/min kg kg

φ2.5×27 ≥2500 2 160 980 7 0.4 198000 250000 Light Soda Ash

φ2.8×27 ≥3100 2 160 1480 6.32 0.3 228000 270000 Light Soda Ash

φ3×30 ≥3600 2 220 1480 5.9 0.25 300800 350000 Light Soda Ash

φ3.2×32 ≥4000 2 310 1480 5.47 0.26 350000 395000 Light Soda Ash

Technical Parameters of Steam Calcination Kiln for Sodium Bicarbonate with Inner Recycling Of Soda

No. Specification (m) Basic Parameters (Speed Rater/min) Inclination (%) Capacity (T/d) Main Motor Power（kw） Thrust Type Support Type Weight (t) Remarks

1 Φ3.2×50 0.674—3.37 3.5 1000 160 Hydraulic Type Sliding Type 252.4

2 Φ3.5×52.5 0.6—3.6 3.5 1500 180 366.5

3 Φ4×56 0.3—3.5 3.5 2000 250 489

4 Φ4×60 0.396—3.96 3.5 2500 315 523

5 Φ4.3×64 0.4—3.96 3.5 3200 420 606.69 Excluding seals of kiln head and kiln rear

6 Φ4.8×72 0.39—3.69 3.5 5000 630 853.3 Excluding kiln head cover

7 Φ4.8×74 0.35—4 4 5000 630 864

8 Φ5.2×61 0.38—3.79 3.5 5500 800 859

9 Φ5×80 max 3.5 4 6000 800

10 Φ5.6×87 max 4.23 4 8000 800 1201 Cooperating with Burleigh Hughes

11 Φ6×90 max 3.5 4 10000 845×2

12 Φ6×95 max 5 4 10000 950×2 Cooperating with Smith

CIC Reference List for Rotating Kiln

No. Client Size Qty Capacity of Cement Plant

1 Conch Cement Group (Tong Ling) Ф6.3×98m 1 12000t/d

2 Conch Cement Group (Tong Ling) Ф6×95m 2 10000t/d

3 Conch Cement Group (Zong Yang) Ф6×95m 1 10000t/d

4 Conch Cement Group (Xu Zhou) Ф6×90m 1 10000t/d

5 Tian Rui Cement Group (Yingyang) Ф6.2×92m 2 10000t/d

6 Shanshui Group Ф6.2×92m 1 10000t/d

7 Sinoma International（Saudi Arabia） Ф6.2×92m 3 10000t/d Parts

8 Sinoma International（UAE） Ф6.2×98m 1 10000t/d Parts

9 Zhonglian Cement Group Ф6.2×90m 1 10000t/d

10 Conch Cement Group (Chi Zhou) Ф5.6×87m 1 8000t/d

11 ASTurkey Ф5.6×87m 1 8000t/d

12 Anhui Wanwei Co Ltd Ф5.0×80m 1 6000t/d

13 Nanyang Hangtian Cement Co Ltd Ф5.2×78m 1 6000t/d

14 Nanjing Kaisheng Engineering Comany（Turkey） Ф5.2×74m 1 6000t/d

15 Nanjing Kansheng Engineering Comany（Vietnam） Ф5.2×82m 1 6000t/d

16 Jiangsu Helin Cement Co Ltd Ф5×74m 1 6000t/d

17 Hongshi Cement Group Ф5×74m 2 5000t/d

CIC Reference List for Rotary Kiln(Parts of)

Cement Rotary Kiln 1

Rotary Kiln in Cement Industry

Fertilizer Kiln for Malaysia Client

Cement Rotary Kiln Application

Cement

Waste Treatment

Nonferrous
