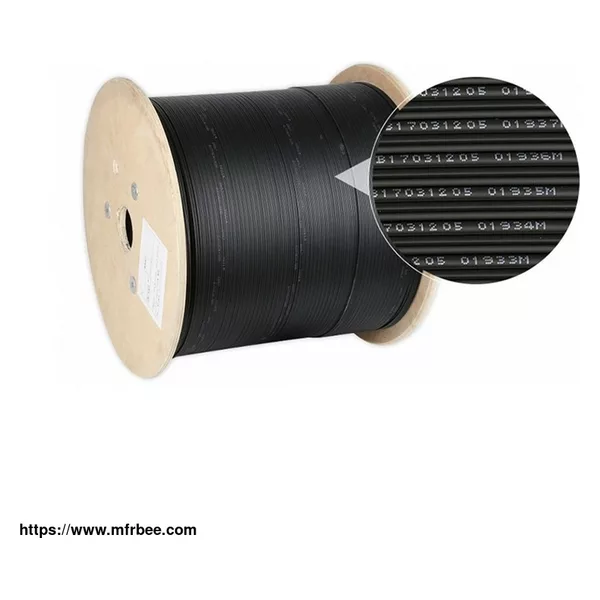

GJYXFCH-2B Fiber Optic Drop Cable-Round
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Indoor drop cable: Small size, especially suitable for adding lines to existing pipelines. Equipped with slot, optical fiber or jumper can be easily taken out.
Our ftth cable price is very reasonable and affordable.
As a fiber optic cable manufacturing company, we promise to produce and sale the products with high quality.
Specification of GJYXFCH-2B Fiber Optic Drop Cable
1. Min. bending radius for installation
Static: 15
Dynamic: 30
2. Application temperature range of outdoor optical cable
Operation: - 20℃ ~ +70℃
Installation: -20℃ ~ +70℃
Storage/transportation: - 20℃ ~ +70℃
Item Test Method Acceptance Condition
Tensile Strength Load: Short term tension Fiber strain ≤ 0.4%
IEC 60794-1-2-E1 Length of cable: ≥ 50m No fiber breakage and no sheath damage.
Load time: 1min
Crush Test Load: Short term crush No fiber breakage and no sheath damage.
IEC 60794-1-2-E3 Load time: 1min
Impact Test Points of impact: 3 No fiber breakage and no sheath damage.
IEC 60794-1-2-E4 Times of per point: 1
Impact energy: 1J
Repeated Bending Bending radius: 30x H Fiber additional attenuation should be no more than 0.4dB;
IEC 60794-1-2-E6 No. of cycle: 300 There shall be no damage to the cable elements under visual inspection.
Load: 20N
Torsion Length: 1m No fiber breakage and no sheath damage.
IEC 60794-1-2-E7 Twist angle: ±180°
No. of cycle: 20
Temperature Cycling Temperature: -20oC~+70oC Fiber additional attenuation should be ≤ 0.4dB/km;
IEC 60794-1-2-F1 Time of each step: 8h There shall be no damage to the cable elements under visual inspection.
Number of cycle: 2
If you are looking for a reliable fiber optic products supplier, don't hesitate to contact us!
