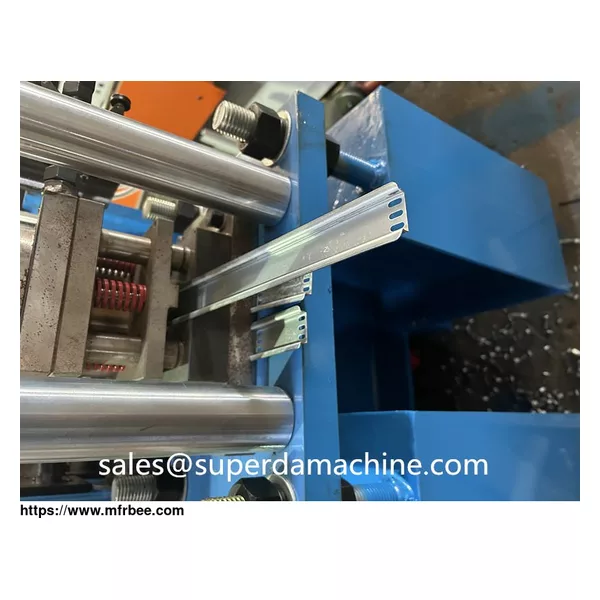

MCB Channel DIN Rail Top Hat Making Machine

Circuit Breaker & Control Panel Board Using Slooted Top Hat DIN Rail mounting roll forming machine manufacturer

Din rail for circuit breaker switch, which widely using in electric industry such as electric cabinet.

YX7.5-35 Servo Motor Roll Forming Machine List

Uncoiler

1) Type,Manual & not power

2) Parameter

1）Passive, discharge

2） Coil weight,< 1T

3）Coil inner D., φ470mm-φ530mm

4）Max. Width., 200mm

5) Thickness <1.6mm

https://www.superdamc.com

Guide device

MCB channel DIN rail roll forming system data

5.1 Forming Roller：8 stations，and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。

5.3 Rolling speeding: 4-6 m/min。

5.4 Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：3KW。
5.6 Main Roller ：￠65mm，45 #。
5.7 Equipment base: 40# H type using welded steel plate.
5.8 Transmission: Gear
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
