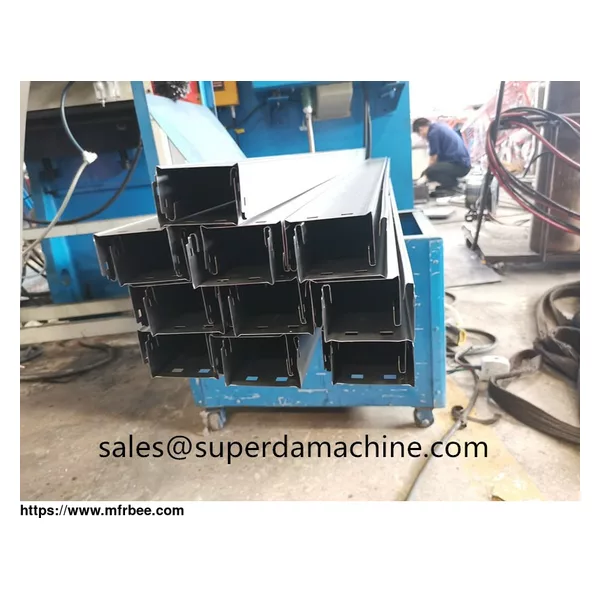

High-speed Rail Station Construction Mounting Channel Manufacture Machine

Metal Channel roll forming machine production line process

Uncoiler straightener 2 in 1 → Guide device → hole punch →roll forming machine →shear device (including knife)→ finished product rack

Main Forming machines (for panel width 125mm with reinforcemnt design )

5.1 Forming Roller：16 stations，and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。

5.3 Rolling speeding: 2-8 m/min。

5.4 Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：7.5KW。
5.6 Main Roller ：￠65mm，45 #。
5.7 Equipment base: 400# H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
