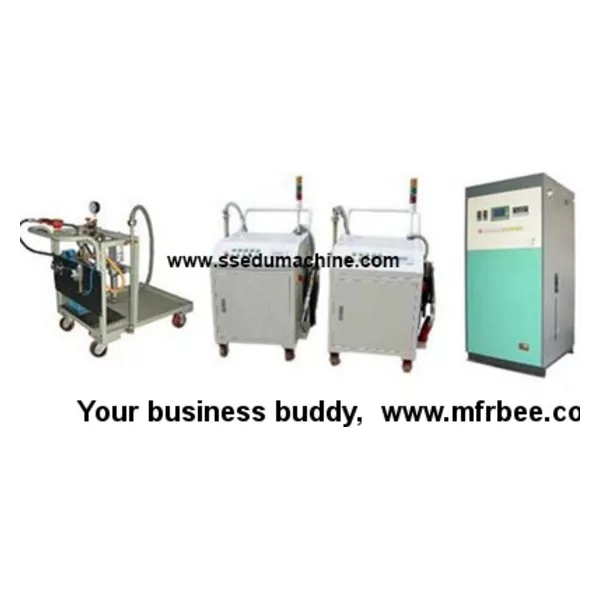

SS104 Quantitative filling machine

Auto Production Line Equipment Automobile Equipment

Filling principles

This equipment use PLC/PC control, pneumatic piston pumps or electro gear pump to control. It uses electronic quantitative filling gun to fill. At the same time, make protection measures according to viscosity, enhancing filling speed and precision. It is suitable for engine oil, gears oil, rear axle oil, fuel oil, cold oil, driving oil, hydraulic oil etc. which is added in vacuum state, and filling in the fixed quantity. Filling in fixed volume, we use qualified components, special structure design. It enable the system qualified filling security. Meanwhile, improve the environment.

Technical parameter

1. Control mode: manual/auto

2. Oil volume: 220L, 450 L（we can make customer order）

3. Oil filling mode: 55 gallon or oil tank（entrance pressure below 15Bar）

4. Temperature range: 20-50degree

5. Filling speed: 1-3L/min, 3-30L/min

6. Filling Precision: 0.5-1%

7. Filling preset range: 0-999.9L

8. Power supply: AC380V

9. Pressure supply: 4-7Bar

10. Drive mode: pneumatic piston pumps, motor gear pump

11. Filling pressure: 2-10Bar

12. Filling gun: electronics/mechanical

13. Appropriate fluid: viscosity below 900 centipoise（when temperature is 40 degree）

Features

1. You can inquiry the filling value per time and the total filling value.

2. Heating temperature, current filling value and data display etc.

3. Alarm content is accurate, you can remove the fault immediately.

4. Control part can work stable.
5. Range preset. It is good for select filling data rapidly.

6. Web link function: RJ45 interface（optional）
7. Scan input: it can recognize 1 dimension code, 2 dimension code（optional）
8. anti-leaking design, keep the clean of the landscape.
