Chafer Fabrics

Minimum Order
1
Packaging
In Pallets, In Rolls, ect
Delivery
10-15DAYS

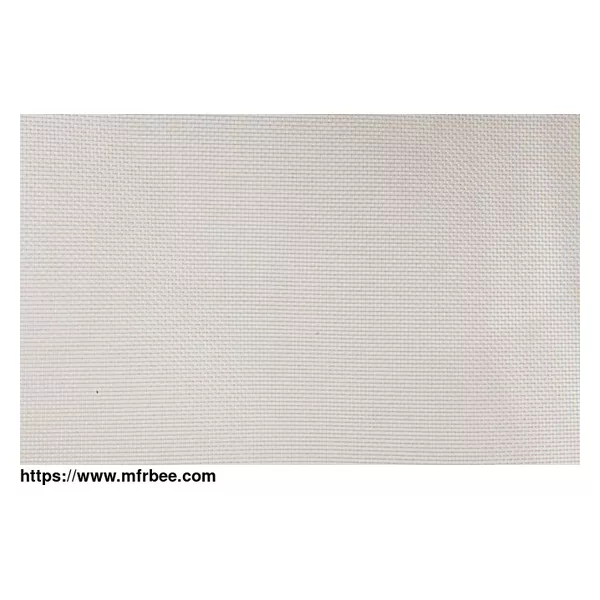

Chafer Fabrics are the special industrial fabrics mainly made of Nylon 6, Nylon 66 and Polyester yarns. Chafer fabric has quite high breaking strength and good adhesion. Yusheng produces a variety of chafer fabrics, Standard products mainly made of Nylon 6, Nylon 66 and Polyester.

Specification of Nylon Chafer Fabric
Nylon6 monofilament chafer fabric:
NO. ITEM Unit Dipped nylon6 monofilament chafer
Warp Weft
1 Material / Nylon 6 monofilament Nylon 6 monofilament
2 Structure D 420 420
3 Ave breaking strength N 320N/15 400N/19
4 Breaking Elongation % 26±6 35±6
5 Hot air shrinkage 150C×30min % 3 3
6 Adhension N/2.5cm 200
7 Thickness mm 0.52±0.05
8 Dip pick up % 3
9 Water content % 1
10 Width tolerance mm ±20

Nylon6 multifilament chafer fabric:
NO. ITEM Unit 840D/1* 1260D/1* 1260D/1*
840D/1 1260D/1 840D/1
1 Warp break strength Kg/end ≥60 ≥90 ≥90
Weft break strength ≥60 ≥90 ≥60
2 Warp break elongation % 20±5 20±5 20±5
Weft break elongation % 36±10 36±10 36±10
3 adhesion N/25mm ≥196 ≥196 ≥196
4 Contain water % ≤1.0 ≤1.0 ≤1.0
5 Pick up % 8±3 8±3 8±3
6 Hot air shrinkage 150℃×30' % ≤3.0 ≤3.0 ≤3.0
7 thickness mm 0.55±0.07 0.75±0.07 0.65±0.07
8 Warp density End/5cm 26±2 38±2 31±2
9 Weft density End/5cm 32±2 31±2 32±2

Nylon66 monofilament chafer fabric:
NO. ITEM Unit Dipped nylon 66 monofilament chafer
Warp Weft
1 Material / Nylon 66 monofilament Nylon 66 monofilament
2 Structure D 420 420
3 Breaking strength N 19.6 19.6
4 Breaking Elongation % 26±6 35±6
5 Hot air shrinkage 150C×30min % 2.2 2.2
6 H-TEST (min) N/10mm 19.6
7 Thickness mm 0.54±0.05
8 Dip pick up % 3.5±1.0
9 Water content % 1.5
10 Width tolerance mm ±20

Packing of Chafer Fabric
Packing in rolls, using standard packing materials and methods.

What Is Chafer Fabric
Chafer Fabrics are specialized textiles primarily crafted from RFL-dipped Nylon 6 or Nylon 66. Chafer Fabric find application in tire manufacturing to shield the tire's sidewalls from abrasion caused by the friction between the bead wires and the tire rim.

Application of Chafer Fabric
Chafer fabrics are mainly used in the tyre beads, specially to protect the side wall of tyres. It protects the tyre from damages during the fitting or removal operations by Rim and Wheel assembly. At the same time, due to its mesh construction, it's also widely used in rubber board and rubber tubs etc.
