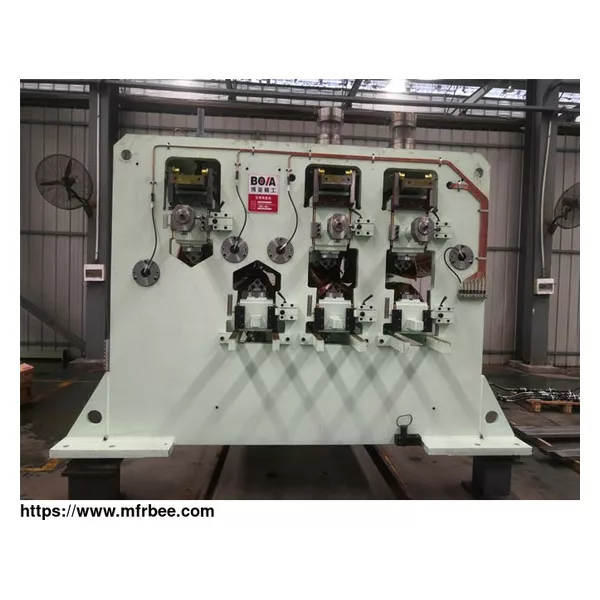

Tension Leveler for Galvanizing Line

Galvanizing line tension leveler is a continuous stretching bending straightening machine that is used in the continuous hot-dip galvanizing line. Combining the characteristics of continuous tension metal straightener and roller straightener, the strip is straightened by plastic extension under the joint action of the tension roller and the bending roller. At the same time, in order to ensure the strip shape and surface quality, the tension leveler machine in tension leveling line can be equipped with wet production mode, to achieve "wet type leveler" production.

Application Scope of Tension Leveler for Galvanizing Line

Application Scope Of Galvanizing Line Tension Leveler (Dry Type)

Material Strip thickness Strip Width Yield Strength Leveling Speed

Galvanized sheet carbon steel 0.2-6.0mm 700-1800mm ≤800MPa ≤300m/min

Application Scope Of Galvanizing Line Tension Leveler (Wet Type)

Material Strip thickness Strip Width Yield Strength Leveling Speed

Galvanized sheet (Automobile, home appliance sheet) 0.1-6.0mm 500-2800mm ≤600MPa ≤500m/min

Structure Advantage of Tension Leveler for Galvanizing Line

Structure Advantage Of Galvanizing Line Tension Leveler (Dry Type)

The frame of the tension leveling steel is an assembly part, and each part is annealed separately to eliminate stress and ensure the frame is not deformed after long-term use. Meanwhile, it also provides convenience for later maintenance.

The roll-changing device is safe and convenient. It is driven by hydraulic pressure. One or all of the roller cassettes can be replaced at one time

The top roller system can be opened quickly to prevent the roller from being damaged. The bottom roller system is used for improving the flatness by adjusting the insertion amount of the lifter. The ball cage coupling is used to connect the driving motor, lifter and detection encoder to facilitate flexible adjustment and maintenance.

Configuring with two sets bending units and two sets leveling units can effectively improve the plate shap, C bending and L bending, according to the incoming material condition and process requirements, the two sets of bending units can also be used for one use and one standby.

Structure Advantage Of Galvanizing Line Tension Leveler (wet Type)

Configuring with two sets bending units and two sets of tension leveller can effectively improve the plate shape, C bending and L bending, according to the incoming material condition and process requirements, the two sets of bending units can also be used for one use and one standby.

The frame is an assembly part, and each part is annealed separately to eliminate stress and ensure the frame is not deformed after long-term use. At the same time, it also provides convenience for later maintenance.

The roll-changing device is safe and convenient. It is driven by hydraulic pressure. One or all of the roller cassettes can be replaced at one time

The top roller system can be opened quickly to prevent the roller from being damaged. The bottom roller system is used for improving the flatness by adjusting the insertion amount of the lifter. The ball cage coupling is used to connect the driving motor, lifter and the detection encoder to facilitate the flexible adjustment and maintenance.

The roller leveling machine can be completely out of contact with the strip when the tension leveler is not put into use to prevent scratches.

The top roller system and the inner wall of the frame have taken effective medium anti-rust measures, which can effectively prevent rust water from dripping on the surface of the strip and affecting the quality of the strip.

Spray device is equipped to clean the strip surface and roller surface to ensure the surface quality of the strip.

The main body of the tension leveler machine has taken effective waterproof, anti-rust measures, good sprinkler and backwater system, which can ensure long-term reliable and stable operation of equipment.

What's The Function of Tension Leveler In Galvanizing Line

The tension leveler machine is usually installed after skin pass mill in the continuous galvanizing unit. After the annealing galvanizing and skin pass process, the strip defect can be removed by the tension leveler machine to obtain good product quality.

Specifically:

1. Get good surface quality. Under the action of leveling, bending, and straightening of tension leveler machine, strip defects such as strip wave, side wave, wavy, buckling and camber can be effectively eliminated, the flatness of the strip is significantly improved.

2. Eliminate yield platform and improve the reprocessing performance of sheet. After the strip is annealed and galvanized, the yield platform will appear on the material strain curve. Under the influence of the yield platform, the finished sheet will have poor stamping forming performance and easy to produce wrinkles during the subsequent processing of customers, which will seriously affect the product quality. Therefore, the cold rolled annealed sheet must eliminate the material yield platform, but the excessive deformation will cause new processing hardening for the sheet, the plasticity of the material will decline, the yield stress will rise again, to maximum elimination of yield platform used by the elongation. The yield platform can also be eliminated by skin pass mill, but in the process, the strip surface will only be deformed. After the elimination of the yield platform, a faster aging recovery will occur, so the elimination is temporary. The tension leveller can make the whole section of the strip deformed, and the deformation is in the vertical direction, transverse and longitudinal three degrees, the strip is not easy to produce aging recovery.

3.Eliminate the anisotropic of sheet, cold rolled low carbon steel in deep drawing process, the yield limit of material in transverse and longitudinal often showed obvious anisotropy, make the punched part uneven thickness in two directions, has lace skirt shape defects and not easy for deep forming. Through the proper process of tension leveler machine, sheet yield limit anisotropy is obviously improved, The deep punching performance of sheet is improved effectively.

Boya company, as an excellent tension leveler manufacturer, offers a wide range of flat rolling for you to choose from.
