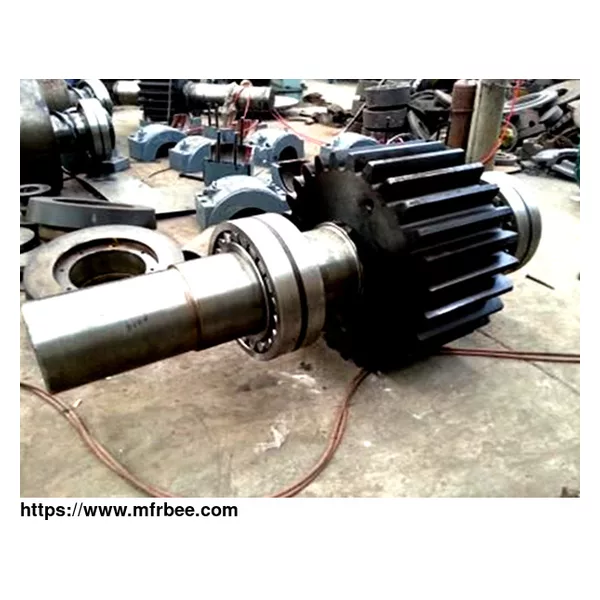

Pinion Shaft

Pinion Shaft

CIC is a more than 50 years pinion gear shaft manufacturer and reputed supplier of forged pinion and pinion shaft widely used in various machinery equipments in the fields of mining, metallurgical, chemical industry, construction and so on. CIC possesses professional design team, advanced equipment and detecting method, strict quality control system to meet all the customized requirements of forged pinion or pinion shaft. Excellent performances, high quality and competitive price will make you rely on us and choose us. CIC has manufactured many kinds of forged parts, include forged pinion, forged roller, support roller forged shafts, thrust roller forged shafts, forged gear pinion shaft both mounted to the shaft and as a part of the shaft, and other more kinds of forged shafts.

Feature of Pinion Shaft

Material: stainless steel, carbon steel, alloy steel and as your requests.

Standard: ANSI, API, ASTM, BSI, DIN, GB, ISO, JIS and more standards.

Mechanical Properties: customized requirements are accepted.

Hardness: customized requirements are accepted.

Surface treatment: rust preventive oil and according to your requirements.

Application: mainly used in various machinery equipment in the fields of mining, metallurgical, chemical industry, construction and so on.

QA and DOC: chemical composition report, mechanical properties report, UT report, PT report, heat treatment report, dimensions check report, hardness report and more.

We can offer third-party inspection.

Process: raw material purchasing - forging - rough machining (rough hobbing)- heat treatment - semi machining (semi-final hobbing) - hardening of tooth surfaces - finish machining (gear grinding) - painting and packing.

Various process conditions are available.

Certificates: ISO 9001:2015

Products ability: Max module: 45

Heat treatment: quenching and tempering, normalizing and tempering.

Tooth surface treatment: carburizing and quenching, surface quenching.

QC: fabrication schedule, fabrication process chart, inspection and test plan.

Packing: coated with rust preventive oil, seaworthy packing.

Our Advantage of Pinion Shaft

More than 30-year experience

SO9001:2015 Standard certified

Custom-made design

All seamless forged

Strict quality control

Prompt delivery

Technical Parameter of Pinion Shaft

Name Pinion Shaft

Material Forging carbon steel, forging alloy steel

Diameter Max. 2m

Length Max. 20m

Module Max. 45

Part Performance of Pinion

Material OD/mm module application client

30CrNiMo8 1201 39 Cement Rotary Kiln KHD

30CrNiMo8 914 30 Cement Mill

30CrNiMo8 1252 42 Cement Rotary Kiln

30CrNiMo8 1252 42 Cement Rotary Kiln

30CrNiMo8 1252 42 Cement Rotary Kiln

30CrNiMo8 1201 39 Cement Rotary Kiln

30CrNiMo8 1520 45 Cement Rotary Kiln

30CrNiMo8 1092 42 Cement Rotary Kiln

42CrMo 420 20 Fertilizer granulator Malaysia

42CrMo 475 25 Fertilizer Dryer

17CrNiMo6 683 20.32 / Venezuela

42CrMo 550 25 Dryer Japan TSK

45 420 20 Dryer

17CrNiMo6 880 40 / Venezuela

ASTM 4340 828 36 / Peru

42CrMo4 700 25 / Egypt

42CrMo 500 20 Fertilizer Dryer Malaysia

41MoCr11 879 28 / Romania

17Cr2Ni2Mo 745 25.4 Rotary Kiln Korea

As one of heavy equipment companies, we can provide kinds of related products for sale, if you have needs, please contact us.
