Brake Hose Crimping Machine

Place Of Origin: hebei

Packaging: 20

Delivery: 15 Days

As the name of brake hose crimping machine we can see that this kind of hose crimper is used for crimping brake hoses in vehicles and air hoses used for diving in the deep sea of modern sports amusement. Here we supply five types brake hose crimping machines. They are used for crimping brake or air hoses with 2 wire spiral, 4 layer wire spiral or 6 layer wire spiral.

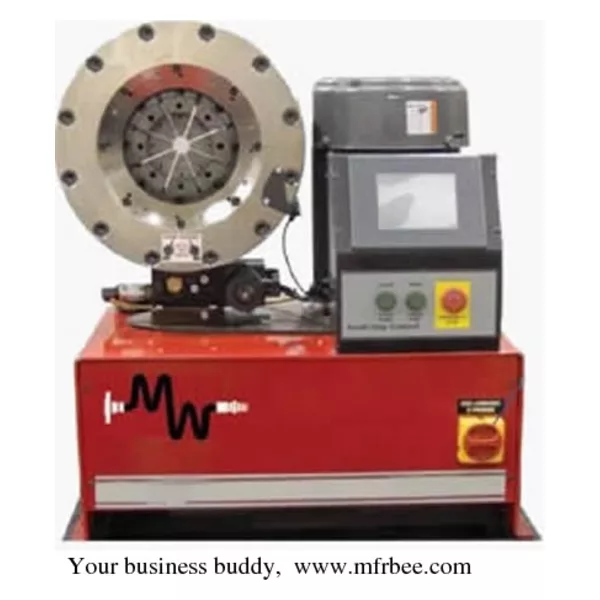

Red color brake hose crimping machine for 84mm hoses BHCM-145 brake hose crimping machine for 145mm hoses

Technical parameters:

Crimper series BHCM-84 BHCM-130 BHCM-145 BHCM-130a BHCM-145a

Master Die I.D. 84mm 130mm 145mm 130mm 145mm

Crimping force (T) 240T 340T 265T 340T 265T

Max hose diameter (2 wire) 2’’ 2-1/2’’ 2’’ 2-1/2’’ 2”

Max hose diameter (4 wire) 1-1/2” 2-1/2” 2” 2-1/2” 2”

Max hose diameter (6 wire) 1-1/4” 2-1/2” 2” 2-1/2” 2”

Max industrial hose diameter N/A (not available) 2-1/2” 4” 2-1/2” 4”

Max opening (die size plus) 38mm 38mm 60mm 38mm 60mm

Max die opening without dies 120mm 160mm 182mm 160mm 182mm

Electrical power (standard) 230V 3Ph 230V 1Ph 230V 3Ph 230V 1Ph 230V 3Ph 230V 1Ph 230V 3Ph 230V 1Ph 230V 3Ph 230V 1Ph

Electrical power (optional) 440V 3Ph 440V 3Ph 440V 3Ph 440V 3Ph 440V 3Ph

Pump HP 5.0HP 7.5HP 7.5HP 5HP 5HP

Manual/Fully automatic Yes Yes Yes Yes Yes

Inch/metric settings Yes Yes Yes Yes Yes

Approx. crimps per hour 1300 1130 1415 1130 1415

Overall size (inch) 29×20×28 29×20×32 29×20×32 29×20×32 29×20×32

Weight (lbs.) 474 579 579 579 579

Finished products (brake hoses)

Three brake hoses finished by brake hose crimper Four brake hoses assemblies made by our brake hose crimping machine
