Large Caliber Hose Crimping Machine

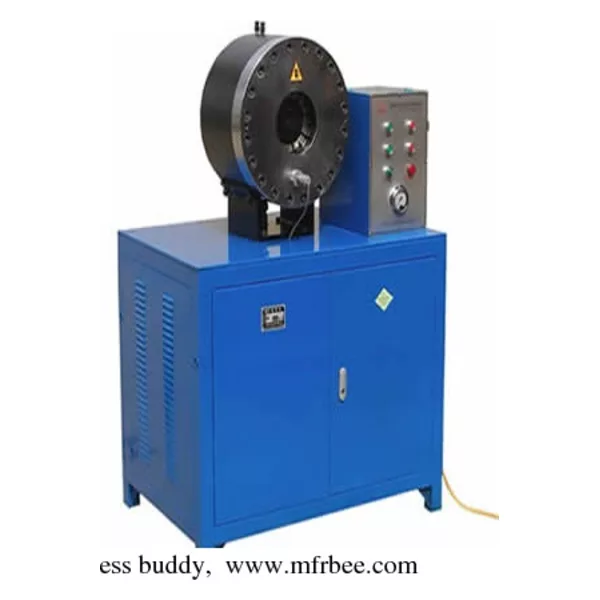

This kind of hose crimping machine is special designed and invented by our research and development department on the basis of customers’ demand to cater to the unique applications. After our long period production sales we aware that though we have manufactured many types hose crimping machines but there is no one for large caliber hoses. Therefore in the help of our engineers and the demands of customers the large caliber hose crimping machines are produced. There are two types namely super large caliber hose crimping machine and large caliber hose crimping machine. Super large caliber hose crimping machine in our workshop Large caliber hose crimping machine designed by us Super large caliber hose crimping machine brief introduction: The super large caliber hose crimping machine is our new and latest type hose crimper for flange joints, heterotypic elbows and irregular joints with the features of large opening range and accurate position. Specifications: Crimping range: the device can crimp hoses within 150mm as customers’ requirements Die size :116×100 Opening: + 70mm Max open without die: 176mm Crimping force: 4100KN Crimping speed: 500/h Systematic pressure: 31.5Mpa Motor: 5.5KW Voltage: 380V, 50HZ Weight: 430kg Overall size: 760×630×1480mm Large caliber hose crimping machine specifications Crimping range: φ6mm—φ102mm Supplied die sets: 11 (can be customized) Die size: 104×66 or 132×110 or 142×110 Opening: +30mm Crimping force: 1100KN Systematic pressure: 31.5MPa Motor: 5.5KW Voltage: 380V/50 HZ Weight: 640Kg Volume: 1015×680×1500mm
